Amphenol Communications Solutions54602-908LFConnector Telephone and Telecom
Modular Jack, Input Output Connectors, Cat 3 Single Modular Jack, Horizontal, Board Through Mount, 8P8C, 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Modular Jack | |
| F | |
| 8 | |
| 8 | |
| 1 | |
| 8 | |
| Cat 3 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 1/Contact | |
| 500 | |
| 20 | |
| 250 | |
| No | |
| -40 | |
| 70 | |
| Box | |
| Single | |
| 15.3 | |
| 17.74 | |
| 12.7 | |
| Through Hole |

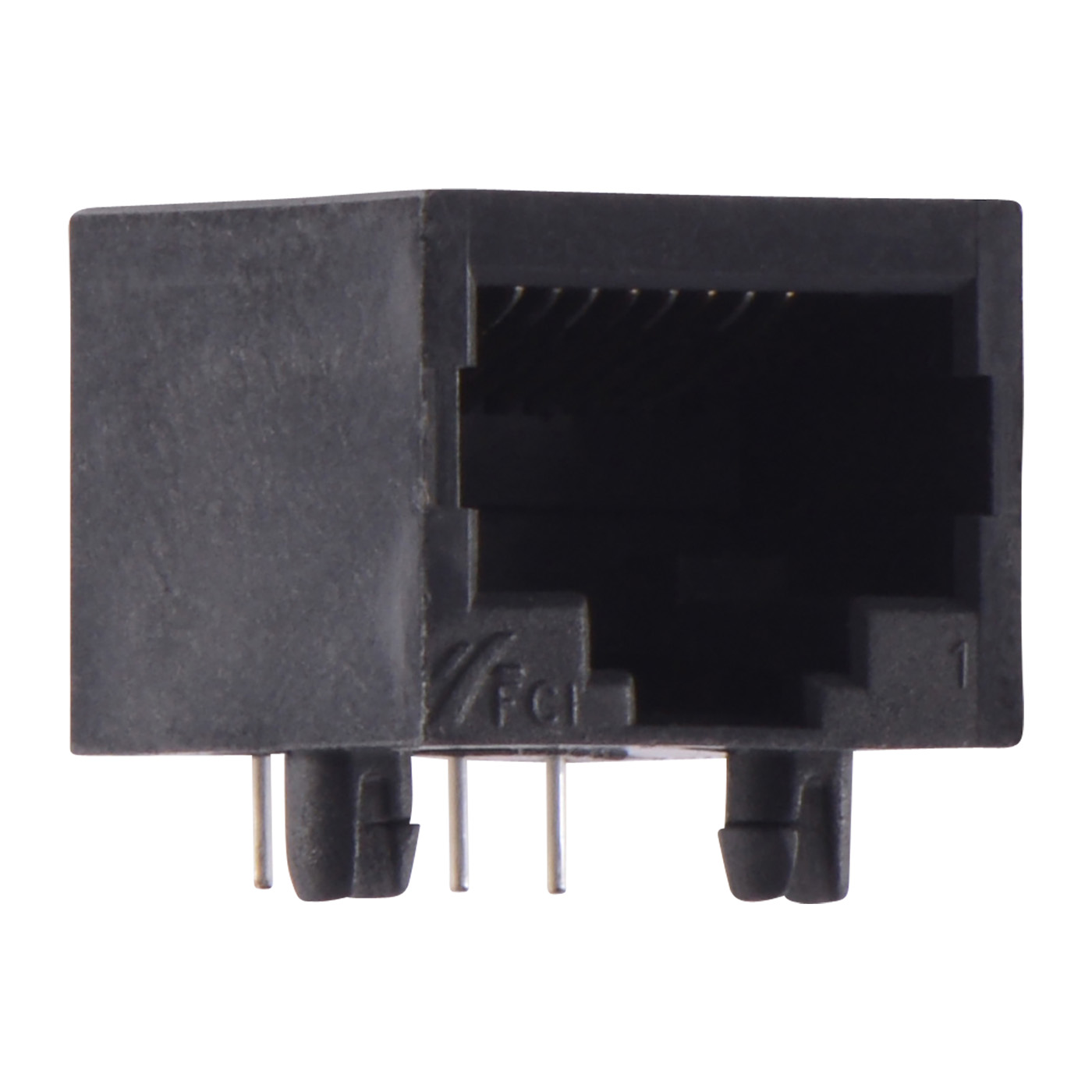

This modular modular jack 54602-908LF telephone and telecom connector from FCI is typically used in applications where high-speed signals are an essential part of maintaining the network. This F connector's 8 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 1.5 A/contact. 54602-908LF is housed in black polyester. It uses the solder termination method. This product is 15.3 mm long, 12.7 mm tall and 17.74 mm deep. This part has an operating temperature of -40 to 70 °C.
