Amphenol Communications Solutions65771-005LFDerivaciones y puentes del conector
5.08mm (0.2inch) Centerline, Single Row Shunt Color Black 0.76 um (30 uin) Gold Plating
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Jumper | |
| F | |
| 2 | |
| 1 | |
| 5.08 | |
| Straight | |
| 2.5/Contact | |
| 800VAC | |
| 50000 | |
| 20 | |
| Bag | |
| 7.62 | |
| 2.67 | |
| 9.55 |

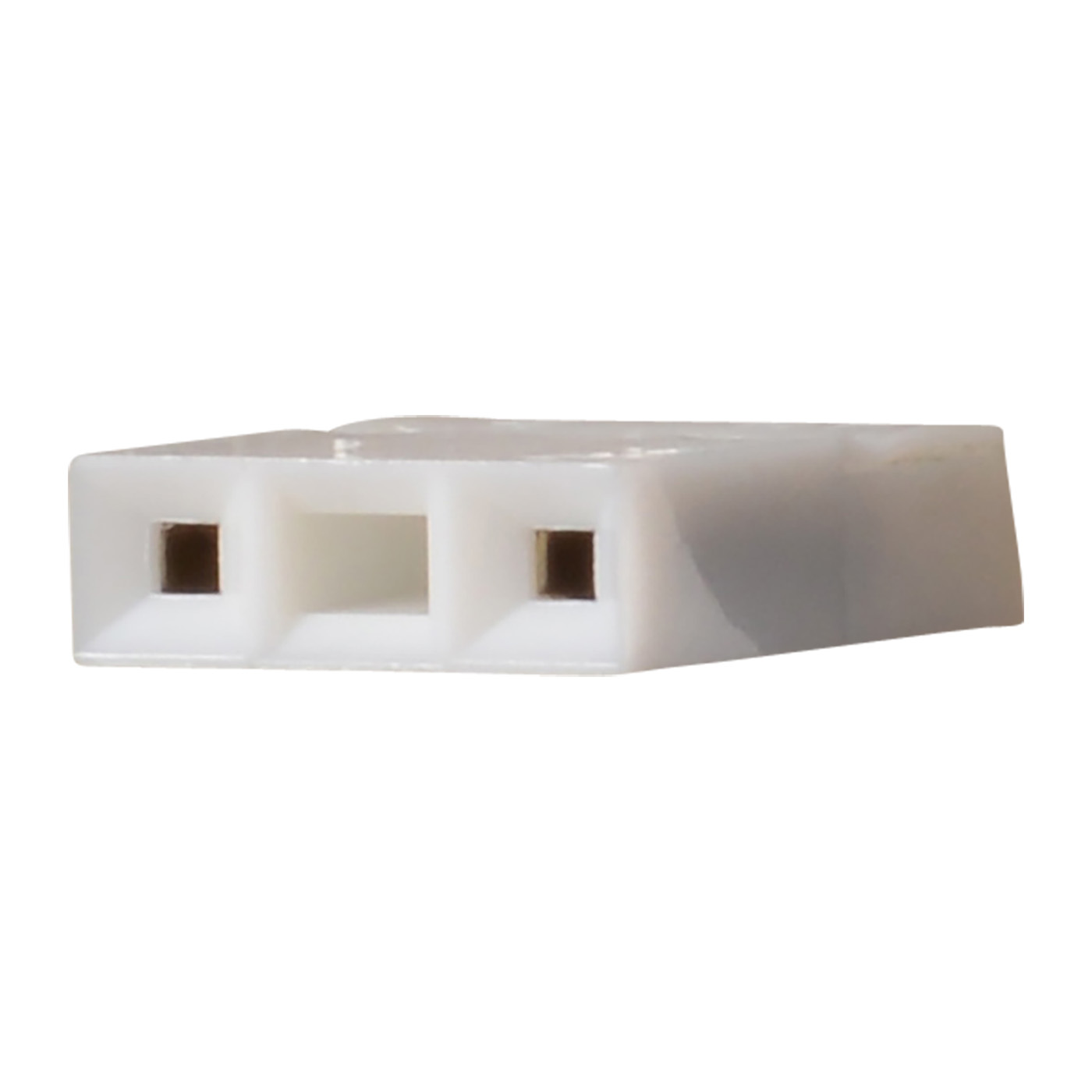

FCI brings you the 65771-005LF connector, great for use in short-circuit and parallel-component situations within your electronic circuit. This F connector's 2 contacts that are made out of brass alloy and plated with gold. It has a female type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 800 VAC. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 2.5 A/contact. This product is 7.62 mm long, 9.55 mm tall and 2.67 mm deep. 65771-005LF is housed in black polyester.
