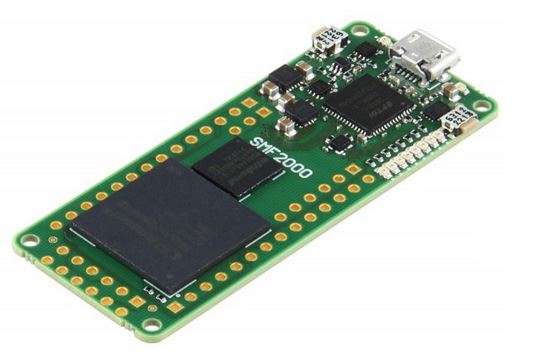

SMF2000 Product Description

The SMF2000 is a low cost small-sized FPGA module that is integrated with a Microsemi SmartFusion2 FPGA SoC and 8 MB Flash memory for configuration and operation. It is ideal for evaluation and rapid prototyping with its SoC, as it combines a 166 MHz Cortex-M3 MCU, including 256 KB Flash and 80 KB SRAM, as well as 12kLUT FPGA Core Logic.

Features:

• Microsemi SmartFusion2 SoC M2S010-VFG400 FPGA

• 8 MByte SDRAM

• 8 MByte QSPI Flash memory

• 25 MHz system clock and 32.768 KHz auxiliary clock

• JTAG and UART over Micro USB2 connector

• 1 x 3-pin header for Live Probes

• 1 x Pmod header providing 8 GPIOs

• 2 x 14-pin headers (2.54 mm pitch) providing 23 GPIOs

• 9 user LEDs

• 1 user push button

• 3.3V single power supply with on-board voltage regulators

• Size 61.5 x 25 mm
