Analog DevicesEVAL-ADT7420-PMDZSensor Development Boards and Kits

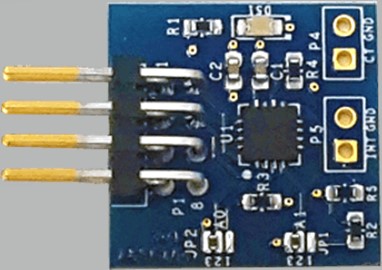

+/-0.25-degree Celsius Temperature Measurement PMOD Board
+/-0.25-degree Celsius Temperature Measurement PMOD Board
The PMOD compatible evaluation/prototyping board is a small form factor, low cost ambient temperature sensor measurement board. When prototyping, this board is used in conjunction with the ADICUP360 or the ADICUP3029 development platform. Direct electrical and physical connection will enable you to get started quickly with hardware and software, to help develop your solution.
ADT7420 Block Diagram:
Features:
-
0.25 Degree Celsius temperature measurement accurate
-
I2C Pmod connector
-
Connectable to FPGA and MCU platforms
Applications:
-
RTD and thermistor replacement
-
Thermocouple cold junction compensation
-
Medical equipment
-
Industrial control and test
-
Food transportation and storage
-
Environmental monitoring and HVAC
-
Laser diode temperature control
Compliant | |
EAR99 | |
Active | |
8473.30.11.80 | |
Automotive | No |
PPAP | No |
Development Tool | |
ADT7420 | |
Temperature and Humidity | |
Digital | |
3.3(Typ) | |
N/A | |
25.4 | |
25.4 |
Compatible Boards:
-
EVAL-ADICUP360: ADUCM360 Microcontroller Evaluation Board
Related ADI parts:
-
ADT7420: ±0.25°C Accurate, 16-Bit Digital I2C Temperature Sensor
