| 欧盟RoHS指令 | Compliant |
| 美国出口管制分类ECCN编码 | EAR99 |
| 环保无铅 | Active |
| 美国海关商品代码 | 8536.50.90.65 |
| Automotive | No |
| PPAP | No |

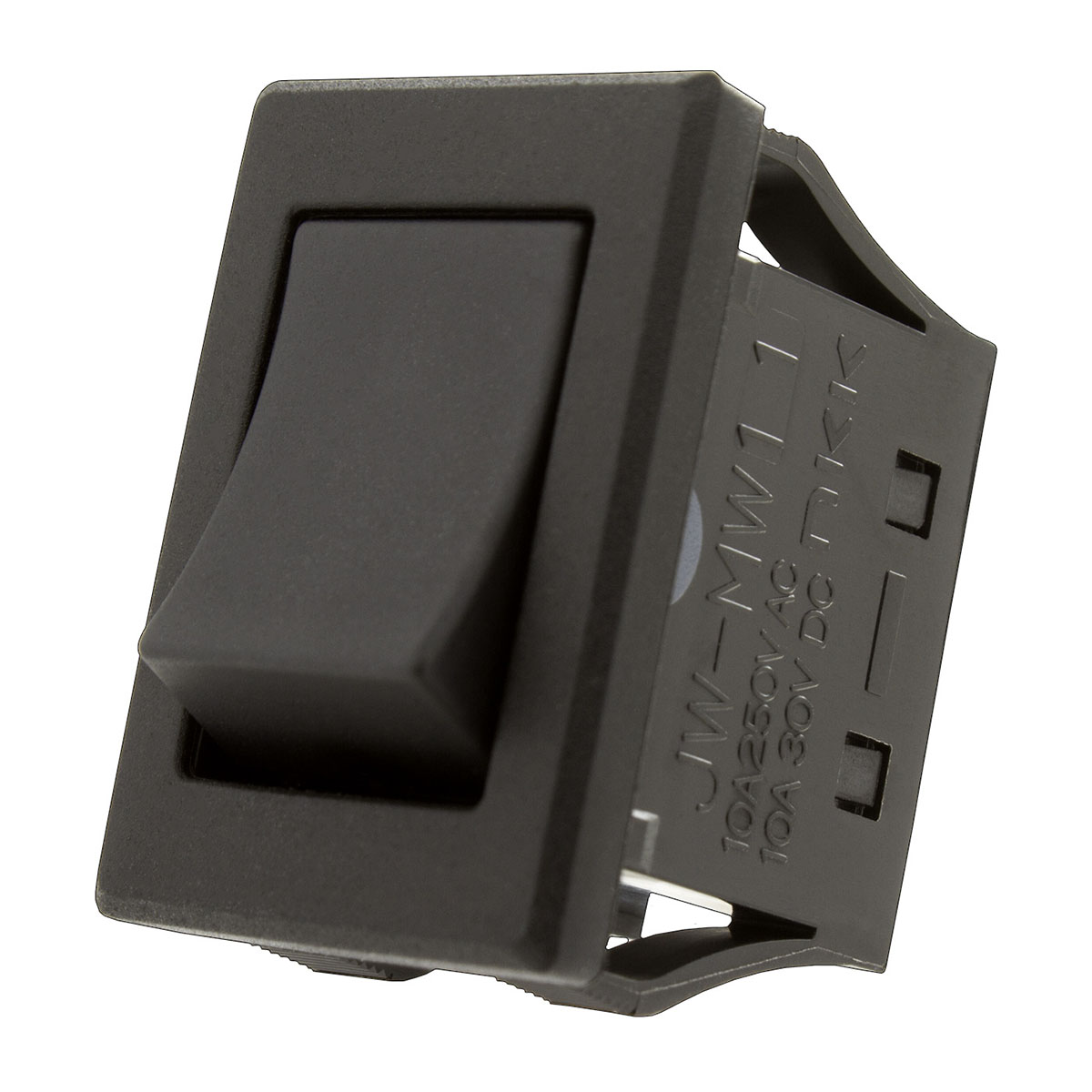

| Pole Throw Configuration | SPST |
| Actuator Style | Curved Rocker |
| Switch Configuration | ON None OFF |
| Maximum Current Rating (A) | 10@250VAC 30VDC |
| Inrush Current Rating (A) | 16 |
| Dielectric Strength | 2000VAC |
| Minimum Insulation Resistance (MOhm) | 1000 |
| Maximum Contact Resistance (mOhm) | 10 |
| Electrical Life (Cycles) | 25000 |
| Mechanical Life (Cycles) | 25000 |
| Actuator Color | Black |
| Actuator Length (mm) | 19.6 |
| Number of Rows | 1 |
| Mounting | Panel Mount |
| Termination Style | Quick Connect/Solder Lug |
| Number of Terminals | 2 |
| Terminal Length (mm) | 7.5 |
| Terminal Pitch (mm) | 7.7 |
| Seal Location | Panel/Terminals/Flange |
| Seal Description | N/A/Epoxy/Acrylonitrile Butadiene Rubber |
| IP Rating | IP67 |
| Base Material | Melamine |
| Color | Black |
| Housing Material | Polyamide |
| Housing Color | Black |
| Bezel Color | Black |
| Body Orientation | Straight |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 85 |
| Body Length (mm) | 29.6 |
| Body Depth (mm) | 21 |
| Body Height (mm) | 21.5 |
| Product Length (mm) | 29.6 |
| Product Depth (mm) | 21 |
| Product Height (mm) | 33 |
| Actuator Depth (mm) | 13.6 |
| Actuator Height (mm) | 4 |
