| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | NRND |
| HTS | 8504.40.60.18 |
| Automotive | No |
| PPAP | No |
| Type | Regulated |
| Style | DIN Rail |
| Power Supply Color | Black |
| Input/Output Type | AC/DC |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Output Voltage (V) | 24 |
| Output Current (A) | 1.3 |
| Output Power (W) | 31.2 |
| Minimum AC Input Voltage (V) | 90 |
| Maximum AC Input Voltage (V) | 264 |
| Minimum DC Input Voltage (V) | 120 |
| Maximum DC Input Voltage (V) | 370 |
| Minimum Isolation Voltage | 3000VAC |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Maximum Input Current (A) | 0.8 |
| Input Frequency (Hz) | 47 to 63 |
| Tolerance (%) | ±1 |
| Efficiency (%) | 83(Typ) |
| Input Connector Type | Screw Terminal Block |
| Output Connector Type | Screw Terminal Block |
| Power Indicator | Yes |
| Ripple & Noise | 50mV |
| Medical | No |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 71 |
| Mounting | DIN Rail |
| Package Height | 91 mm |
| Package Width | 55.6 mm |
| Package Length | 53 mm |

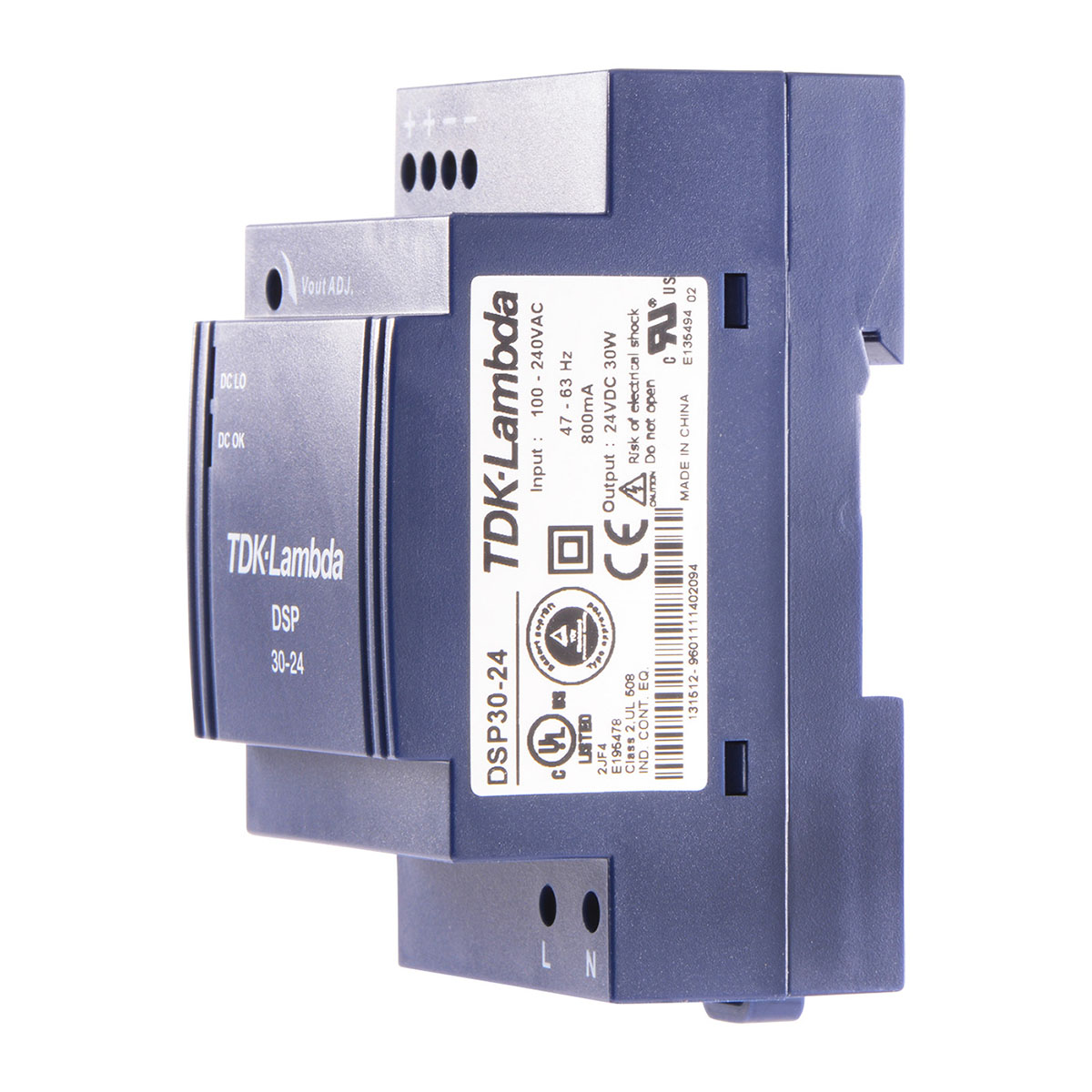

Your electronic devices will need this DSP30-24 AC to DC power supply from TDK-Lambda to convert alternating currents into useful direct currents to operate. It has a voltage of 24 V and maximum output power of 31.2 W. This part's single output can handle a current up to 1.3 A. This part has a minimum operating temperature of -25 °C and a maximum of 71 °C.
