| 유럽 연합 RoHS 명령어 | Compliant |
| 미국수출통제분류ECCN 인코딩 | EAR99 |
| 친환경 무연 | Active |
| 미국 세관 상품 코드 | 8542.39.00.60 |
| Automotive | No |
| PPAP | No |

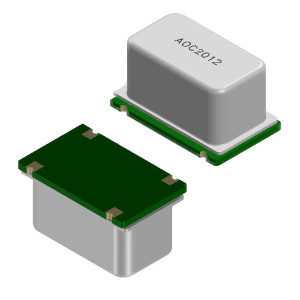

| Type | Oven Controlled Crystal Oscillator (OCXO) |
| Upper Frequency (MHz) | 25 |
| Center Frequency (MHz) | 25 |
| Output Frequency (MHz) | 25 |
| Frequency Aging | ±100ppb/(1st) Year |
| Typical Phase Noise (dBc/Hz) | -152@10KHz |
| Frequency Tolerance | ±0.5ppm |
| Frequency Stability | ±0.01ppm |
| Load Capacitance (pF) | 15 |
| Maximum Symmetry (%) | 55 |
| Output Level | LVCMOS |
| Minimum Operating Supply Voltage (V) | 3.135 |
| Maximum Operating Supply Voltage (V) | 3.465 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Supply Current (mA) | 289 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Cut Tape |
| Mounting | Surface Mount |
| Package Height | 11(Max) |
| Package Width | 12.7 |
| Package Length | 20.32 |
| PCB changed | 4 |
| Supplier Package | SMD |
| Pin Count | 4 |
