DC1278A, LTC2351-14 Demo Board, 14-bit, 6-ch 1.5 Msps Simultaneous Sampling SAR ADC

Reference Design using part LTC2351CUH-14 by Analog Devices

Enlarge

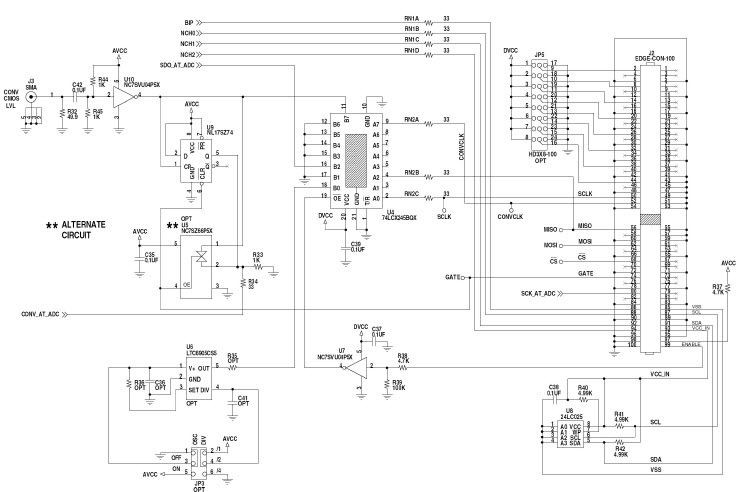

LTC2351 ADC Schematic (Sheet 1 of 2)
LTC2351 ADC Schematic (Sheet 2 of 2)
Image 1 / 2

Manufacturer

Analog Devices
  • Application Category
    Data Conversion
  • Product Type
    Analog to Digital Conversion
Buy

Associated Documents

For End Products

  • Data Acquisition System
  • Motion Motor Control
  • Power Meter
  • UPS Power Supply

Description

  • DC1278A, LTC2351-14 Demo Board, 14-bit, 6-ch 1.5 Msps Simultaneous Sampling SAR ADC. Demonstration circuit features the LTC2351-14 6-channel, 14-Bit, simultaneous sampling ADC. Total throughput is 1.5 MSPS, 250 KSPS per channel, with a typical channel-to-channel aperture skew of 200ps

Key Features

  • ADC Resolution
    14 Bit
  • ADC Sampling Rate
    1.5M SPS
  • Number of Channels
    6CH
