LMK03002CEVAL, Evaluation Board using LMK03002 Precision Clock Conditioner with Integrated VCO

Reference Design using part LMK03002CI by Texas Instruments

Enlarge

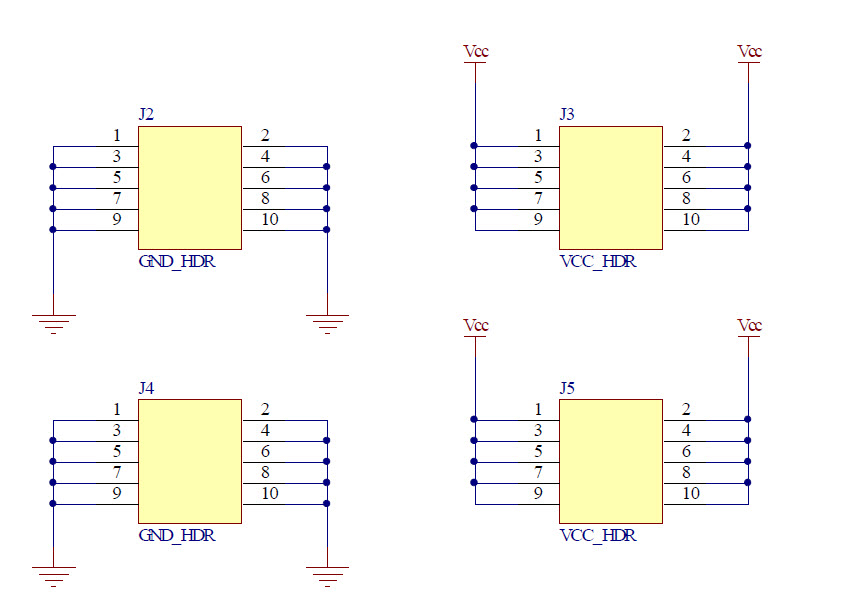

LMK03002 Schematic (Sheet 1 of 3)
LMK03002 Schematic (Sheet 2 of 3)
LMK03002 Schematic (Sheet 3 of 3)
Image 1 / 3

Manufacturer

Texas Instruments
  • Application Category
    Clock and Timing
  • Product Type
    Clock Generator

For End Products

  • Clock and Timing Devices
  • DSLAM
  • Medical and Healthcare
  • Military and Aerospace
  • Optical Networking
  • Test Equipment
  • Wireless Infrastructure

Description

  • LMK03002CEVAL, Evaluation Board using LMK03002 precision clock conditioner with integrated VCO. The package consists of an evaluation board and Code Loader software. The Code Loader software will run on a Windows 2000 or Windows XP PC
