LMK04000, Resonant Crystal Oscillator Evaluation Board

Reference Design using part LMK04000BISQ by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Oscillators
  • Product Type
    Crystal Oscillator

Associated Documents

For End Products

  • Medical and Healthcare
  • Military and Aerospace
  • SONET
  • Test Equipment
  • Video and Imaging
  • Wireless Infrastructure

Description

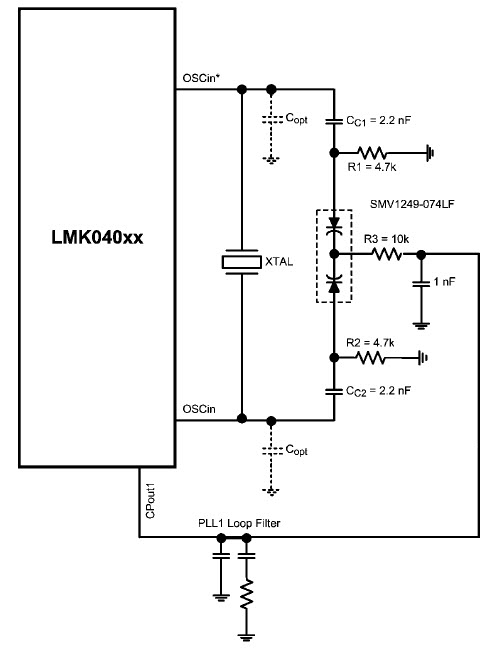

  • LMK04000, Resonant Crystal Oscillator Evaluation Board. The LMK04000 family supports either an external, Self-contained VCXO module or a discretely implemented voltage controlled crystal oscillator based upon a crystal resonator

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
LMK04000BISQ/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
LMK04000BISQX/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
LMK04000BISQE/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
LMK04000BISQ/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
LMK04000BISQX/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
LMK04000BISQE/NOPB Texas Instruments Clock Generators and Synthesizers Clock Generator 0.001MHz to 400MHz-IN 1080MHz-OUT 48-Pin WQFN EP T/R Buy
