LT3008EDC6 Demo Board, 3uA Iq, 20mA Low Dropout Linear Regulators

Reference Design using part LT3008EDC by Analog Devices

Enlarge

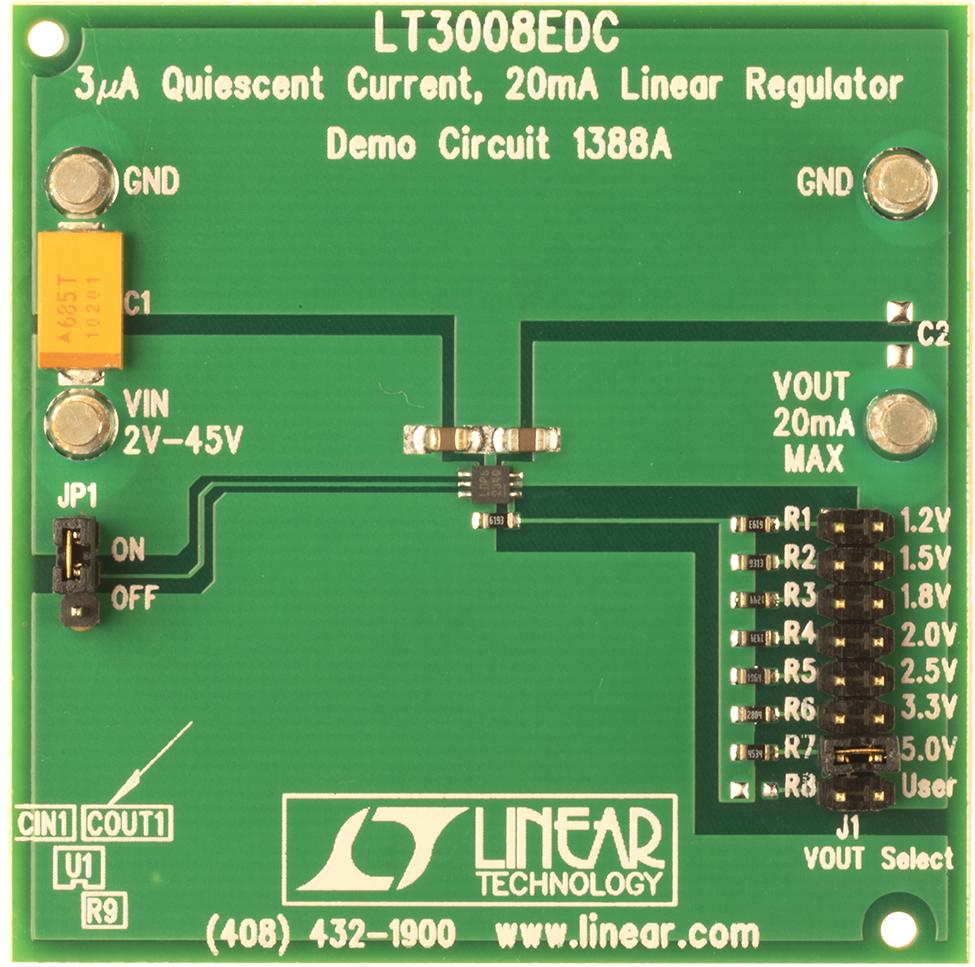

DC1388A Image

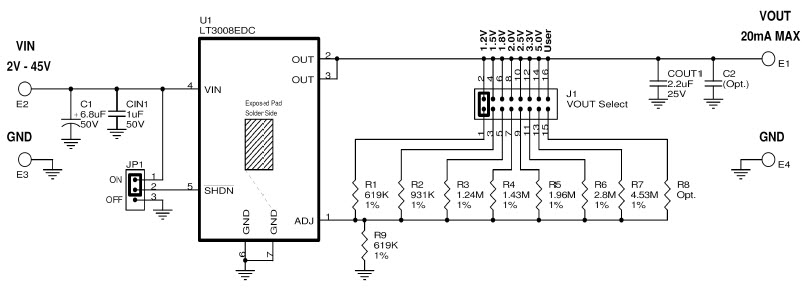

DC1388A Schematic
Image 1 / 2

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

For End Products

  • Automotive and Transportation
  • Industrial
  • Portable
  • Remote Control

Description

  • Demonstration circuit 1388A is an Ultra Low quiescent current and low dropout voltage linear regulator featuring LT3008, which comes in an 8-lead TSOT23 or 2mmX2mm DFN package. The DC1388A has an input voltage range from 2V to 45V, and is capable of delivering up to 20mA output current

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2 to 45 V
  • Output Voltage
    1.2|1.5|1.8|2|2.5|3.3|5 V
  • Output Current
    0.02 A
  • Topology
    LDO

Featured Parts (19)

Featured Parts
Part Number Manufacturer Type Description
LT3008EDC-2.5#TRMPBF Analog Devices Linear Regulators LDO Regulator Pos 2.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-1.5#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC#PBF Analog Devices Linear Regulators LDO Regulator Pos 0.6V to 44.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 0.6V to 44.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC#TRMPBF Analog Devices Linear Regulators LDO Regulator Pos 0.6V to 44.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-1.8#TRMPBF Analog Devices Linear Regulators LDO Regulator Pos 1.8V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-3.3#TRMPBF Analog Devices Linear Regulators LDO Regulator Pos 3.3V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-2.5#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 2.5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-5#TRMPBF Analog Devices Linear Regulators LDO Regulator Pos 5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-5#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 5V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-1.8#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.8V 0.02A 6-Pin DFN EP T/R Buy
LT3008EDC-1.2#TRPBF Analog Devices Linear Regulators LDO Regulator Pos 1.2V 0.02A 6-Pin DFN EP T/R Buy
Load More
