THEVAL3512, Evaluation Board based on THL3512 24-channel LED Driver with LVDS Interface

Reference Design using part THL3512 by California Eastern Laboratories

Enlarge
THEVAL3512 Image

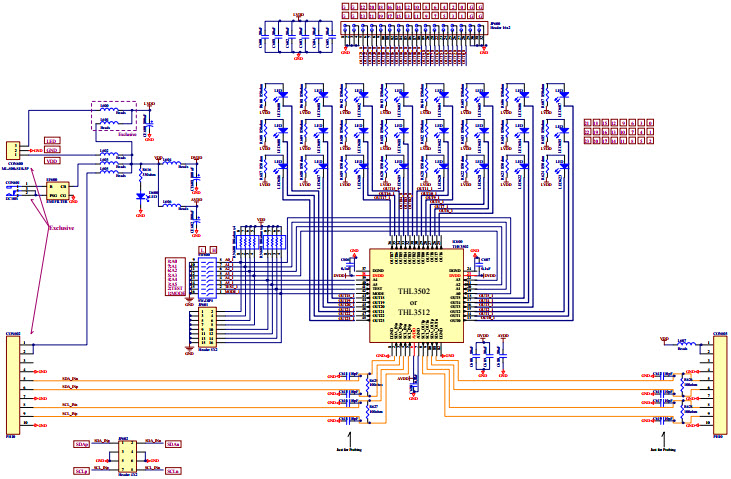

THEVAL3512 Schematic
Image 1 / 2

Manufacturer

California Eastern Laboratories
  • Application Category
    Lighting
  • Product Type
    High Brightness LED Driver

For End Products

  • Backlighting
  • Digital Signage
  • Illumination
  • OLED Display

Description

  • THEVAL3512, Evaluation Board for the THL3512 is a LED driver with 24-channel open-drain outputs. The embedded oscillator and PWM controller individually generates 256-step brightness set by the dedicated registers for each channel. The serial interface of 2-pair LVDS lines (clock and data) features high-level noise tolerance, high-speed and long-distance transmission

Key Features

  • Input Voltage
    3 to 5.5 V
  • Output Voltage
    40 V
  • Output Current
    0.1 A
  • Number of Derived Elements
    16
