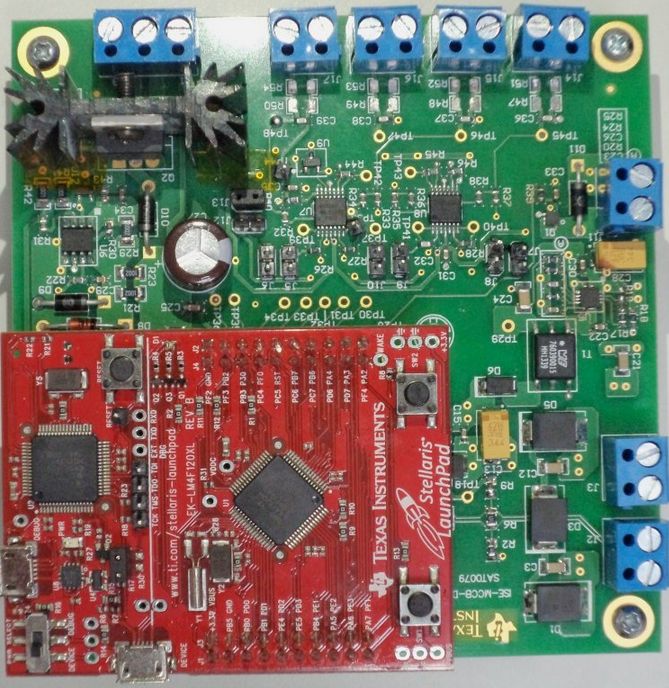

TIDA-00229, Self or Dual-Powered Supply for Protection Relay, MCCBs and ACBs Reference Design
Reference Design using part LM5017MRE/NOPB by Texas Instruments
1 / 4
Associated Documents
For End Products
- Glass Break Detector
- Industrial
Description
- TIDA-00229, Self or Dual-Powered Supply for Protection Relay, MCCBs and ACBs Reference Design. This power supply solution for Protection Relays and MCCBs handles both the current input from a Current Transformer (CT) or input from an Auxiliary (Aux) source. The (self-powered) capability comes from being able to harness the power available in the grid through the CT. The flexibility of this solution's (dual-power) input comes from the ability to also handle the Aux input - which is often a battery source
Featured Parts (3)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS7A6533QKVURQ1 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.3A 3-Pin(2+Tab) TO-252 T/R Automotive AEC-Q100 | Buy | |
|
LM5017MRE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 7.5V to 100V Synchronous Step Down Single-Out 1.225V 0.6A 8-Pin HSOIC EP T/R | Buy | |
|
|
LM5017MRE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 7.5V to 100V Synchronous Step Down Single-Out 1.225V 0.6A 8-Pin HSOIC EP T/R | Buy | |
