TIDEP0057, Multi-Protocol Digital Position Encoder Master Interface Reference Design With AM437x on PRU-ICSS
Reference Design using part SN74CBTLV3257DGVR by Texas Instruments
1 / 4
Associated Documents
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS Assembly Files

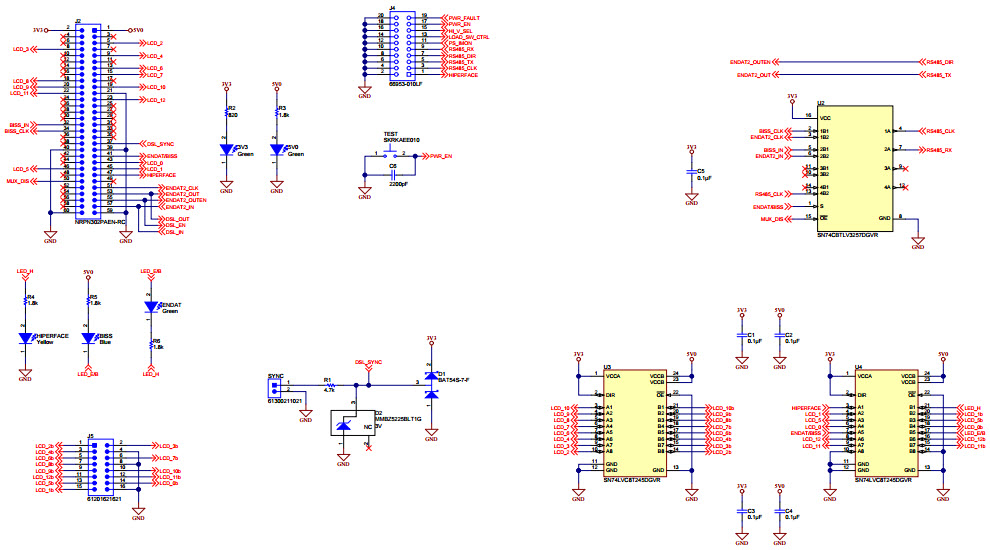

- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS Schematic
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS PCB 3D PRINT
- TIDEP0057 Multi-Protocol-Encoder Software
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS Gerber
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS BOM
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS CAD Files
- Multi-Protocol Position Encoder Interface With AM437x on PRU-ICSS Layer Plots
For End Products
- Encoder
- Position Control
- Servo Drives
Description
- TIDEP0057, Multi-Protocol Digital Position Encoder Master Interface Reference Design With AM437x on PRU-ICSS. This Design describes the integrated multi-protocol digital position encoder master interface support. The supported digital position encoder master protocols are EnDat 2.2, Hiperface DSL and BiSS C. The integrated multi-protocol encoder master has the benefit to work without additional field programmable gate array (FPGA), application specific integrated circuit (ASIC) and programmable logic device (PLD) while support multiple of the encoder protocols - therefore it saves cost and reduces board space
Key Features
-
Video Interface TypePRU-ICSS
Featured Parts (2)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
SN74LVC8T245DGVR | Texas Instruments | Level Translators | Voltage Level Translator 8-CH Bidirectional 24-Pin TVSOP T/R | Buy | |
|
SN74CBTLV3257DGVR | Texas Instruments | Bus Switches | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin TVSOP T/R | Buy | |
