TMDSEVM6678LE, TMS320C6678 Lite Evaluation Module with XDS560V2 Emulation for TMX320C6678CYP Digital Signal Processor

Reference Design using part TMX320C6678CYP by Texas Instruments

Enlarge

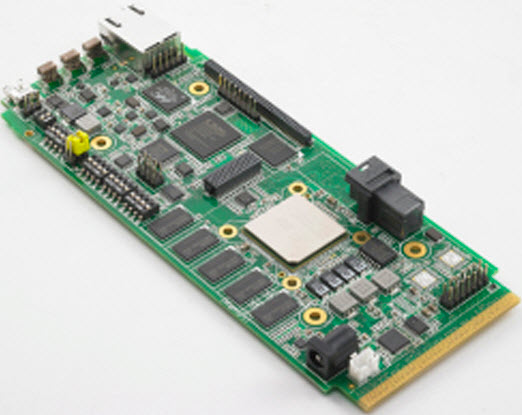

TMDSEVM6678LE Top Image (Sheet 1 of 39)
TMDSEVM6678LE Bottom Image (Sheet 2 of 39)
TMDSEVM6678LE Specification (Sheet 3 of 39)
Block Diagram_AMC (Sheet 4 of 39)
Power Eequence (Sheet 5 of 39)
Power Consumption (Sheet 6 of 39)
Power Distribution (Sheet 7 of 39)
Clock Diagram (Sheet 8 of 39)
FPGA_Block (Sheet 9 of 39)
BUS Management Map (Sheet 10 of 39)
AMC GF (Sheet 11 of 39)
MMC (Sheet 12 of 39)
DSP_SERDES_Ports (Sheet 13 of 39)
DSP_DDR3 (Sheet 14 of 39)
DSP_EMIF (Sheet 15 of 39)
DSP_JTAG_EMU_TSIP (Sheet 16 of 39)
DSP_MISC (Sheet 17 of 39)

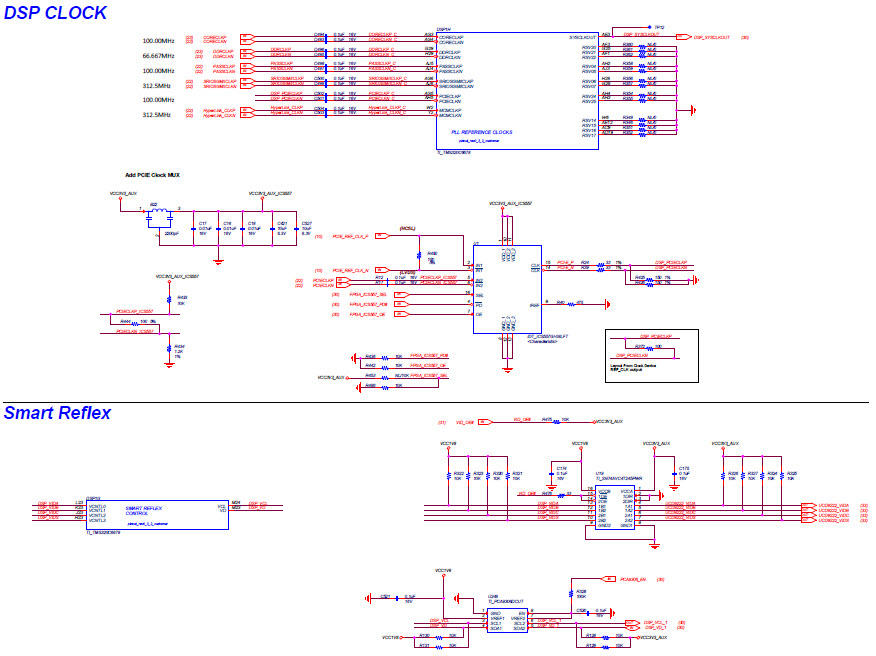

DSP_Clock_Smart Reflex (Sheet 18 of 39)
DSP_PowerA (Sheet 19 of 39)
DSP_PowerB (Sheet 20 of 39)
DSP_PowerC (Sheet 21 of 39)
DSP_GND (Sheet 22 of 39)

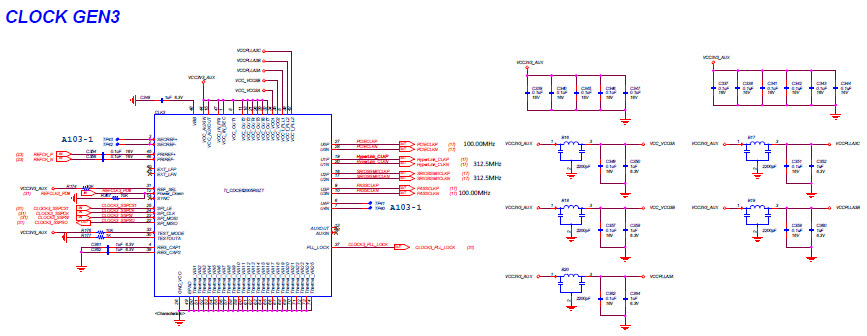

CLOCK_GEN3 (Sheet 23 of 39)
CLOCK GEN2 (Sheet 24 of 39)

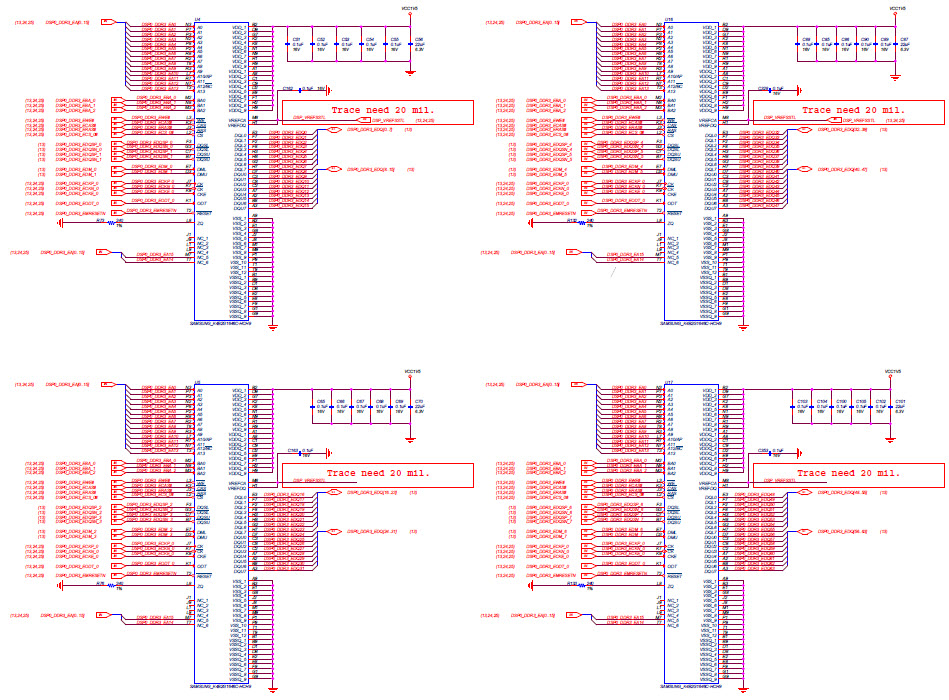

DDR3 (Sheet 25 of 39)
DDR3_ECC (Sheet 26 of 39)
USB-JTAG (Sheet 27 of 39)
Gigabit Ethernet PHY (Sheet 28 of 39)

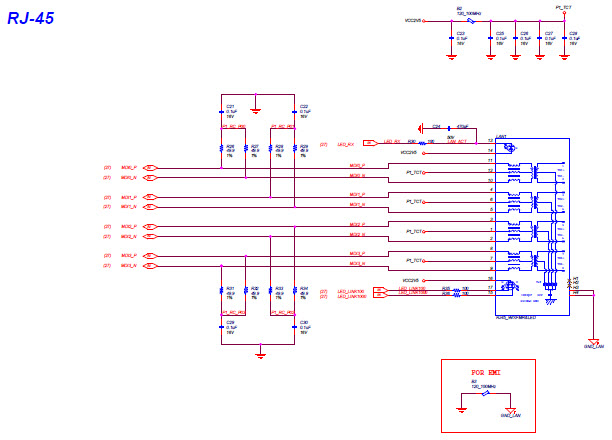

RJ45/MISC (Sheet 29 of 39)
Connectors for HyperLink & Debug (Sheet 30 of 39)
FPGA_XC3S200AN_A (Sheet 31 of 39)
FPGA_XC3S200AN_B (Sheet 32 of 39)
FPGA_XC3S200AN_C (Sheet 33 of 39)
Power ucd9222 (Sheet 34 of 39)
Power_1.2V/1.8V/2.5V/0.75V (Sheet 35 of 39)
Power_VCC5/VCC3V3_AUX (Sheet 36 of 39)
Power VCC1V5 (Sheet 37 of 39)
Block Diagram (Sheet 38 of 39)
Interfaces (Sheet 39 of 39)
Image 1 / 39

Manufacturer

Texas Instruments
  • Application Category
    Embedded System
  • Product Type
    Application Processor
Buy

Associated Documents

For End Products

  • Radar System

Description

  • TMDSEVM6678LE, TMS320C6678 Lite Evaluation Module with XDS560V2 Emulation is easy-to-use, cost-efficient development tools that help developers quickly get started with designs using the C6678 or C6674 or C6672 multicore DSP. The EVM includes an on-board, single C6678 processor with robust connectivity options that allows customers to use this AMC form factor card in various systems. They also work as a stand alone board

Key Features

  • Embedded System Type
    DSP
  • Family Name
    C6000

Featured Parts (17)

Featured Parts
Part Number Manufacturer Type Description
UCD7242RSJT Texas Instruments Power Supply Controllers and Monitors Controller 2.2V to 18V 32-Pin VQFN-HR EP T/R Buy
SN74ALVC125PWR Texas Instruments Buffers and Line Drivers Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R Buy
MCP9700AT-E/LT Microchip Technology Temperature and Humidity Sensors Temperature Sensor Analog 5-Pin SC-70 T/R Buy
TPS51200DRCT Texas Instruments Special Purpose Voltage Regulators DDR Memory Termination Regulator 2.375V to 3.5V 10-Pin VSON EP T/R Buy
CDCE62005RGZT Texas Instruments Clock Generators and Synthesizers Clock Generator MHz to 1.5GHz-IN 1175MHz-OUT 48-Pin VQFN EP T/R Buy
SN74LVC1G07DBVR Texas Instruments Buffers and Line Drivers Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SOT-23 T/R Buy
PCA9306DCUT Texas Instruments Level Translators Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R Buy
SN74LVC2G125DCUR Texas Instruments Buffers and Line Drivers Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin VSSOP T/R Buy
TPS73701DRBT Texas Instruments Linear Regulators LDO Regulator Pos 1.2V to 5.5V 1A 8-Pin VSON EP T/R Buy
MAX3221ECPWR Texas Instruments Bus Line Transceivers Single Transmitter/Receiver RS-232 16-Pin TSSOP T/R Buy
TXS0108EPWR Texas Instruments Level Translators Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R Buy
SN74AVC4T245PWR Texas Instruments Level Translators Voltage Level Translator 4-CH Bidirectional 16-Pin TSSOP T/R Buy
Load More
