| 欧州RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8538.90.81.80 |
| Automotive | No |
| PPAP | No |
| Connector Type | Connector D-Subminiature |
| Contact Type | Power |
| Gender | PIN |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Maximum Current Rating (A) | 10 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Product Length (mm) | 20.93 |
| Contact Size | 8 |
| Mounting | Cable Mount |
| Wire Size (AWG) | 16 |

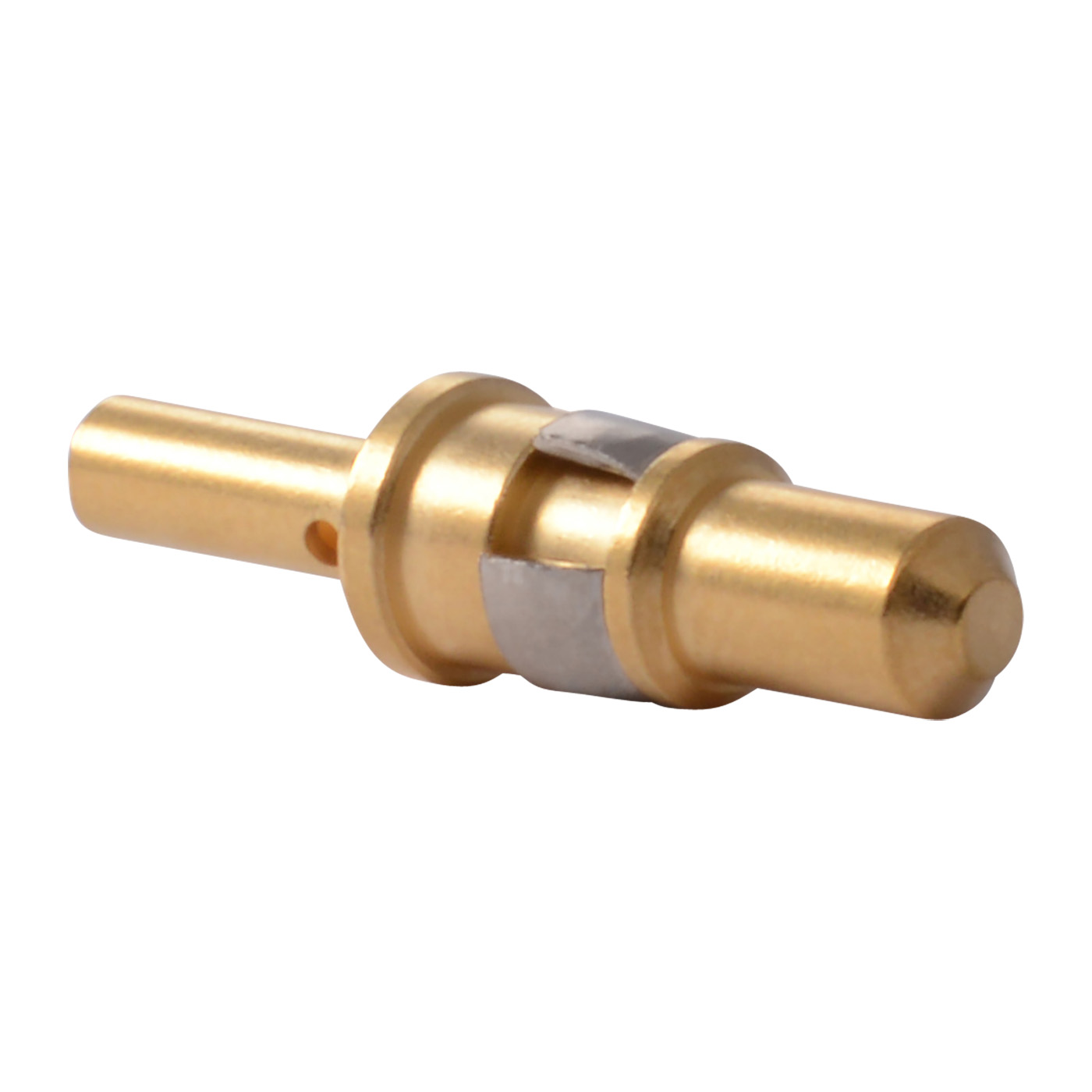

A solid mechanical connection is ideal for any cable connection, this DM130340-4 connector contact manufactured from ITT will get the job don. It has a straight body orientation. This device has a maximum current rating of 10 A. This has a Connector D-Subminiature connector. This product is 20.93 mm long. Its wire is 16 AWG. It uses the crimp termination method. This connector contact has an operating temperature range of -55 °C to 125 °C.
