6 to 12W, 12V AC to DC Single Output Power Supply for ATX Power Supply
onsemi이 부품 NCP1013 을 사용하는 참조 설계
이미지
1 / 1
최종 제품의 경우
- ATX Power Supply
Description

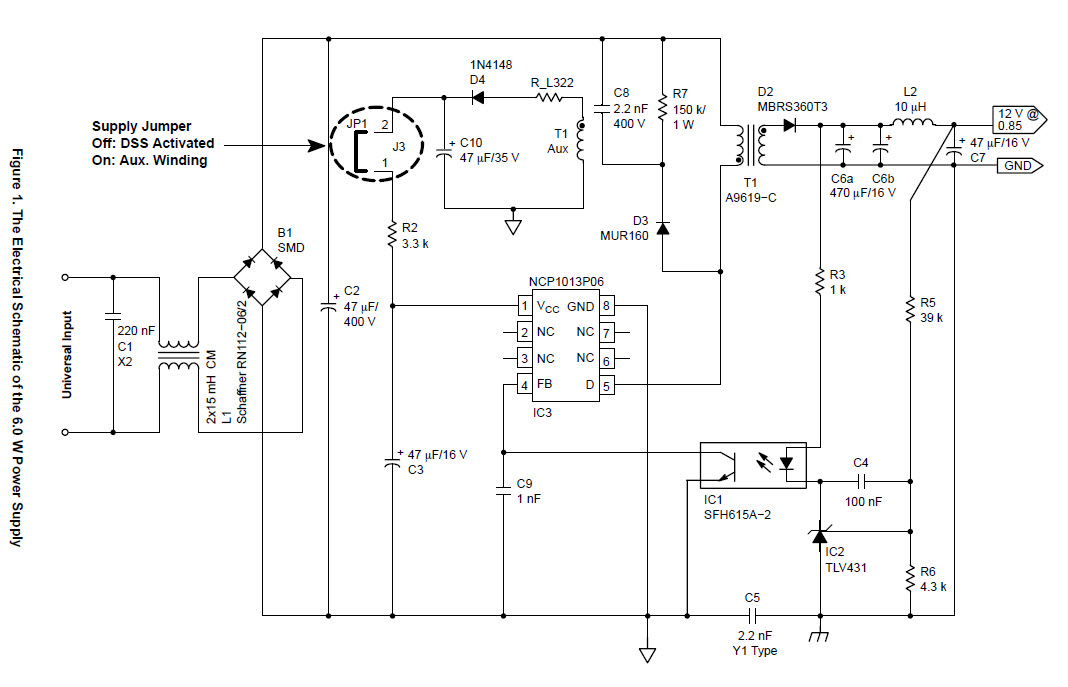

- NCP1013P06, a new monolithic high-voltage switcher. Delivering 6.0 W from 90 VAC to 250 VAC, it offer the ability to either use the Dynamic Self-Supply or an auxiliary winding
최종 제품의 경우
-
Conversion TypeAC to DC
-
Input Voltage90 to 250 (AC) V
-
Output Voltage12 V
-
Output Current0.85 A
-
Output Power6 to 12 W
-
TopologyFlyback
