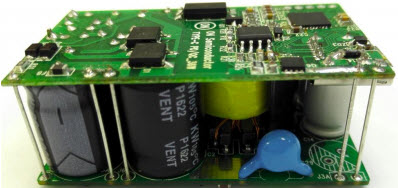

DN05099/D, 36 W Type-C Interface PD-3.0 Adapter Solution Design Note
onsemi이 부품 NCP1340B3 을 사용하는 참조 설계
이미지
1 / 5
최종 제품의 경우
- Adaptor AC to DC Supply
- Personal Digital Assistant
- Smart Phone
Description
- DN05099/D, Design Note describes a 36 watt, Type-C interface PD-3.0, universal AC input, constant voltage power supply intended for smart phone, PAD and NB adaptor supporting PD3.0 protocol, where isolation from the AC mains is required, and low cost, high efficiency and low standby power are essential. The featured power supply is a simple QR Flyback topology utilizing NCP1340 HF PWM controller, NCP43080 synchronous rectified controller and NCP4371 CCG3 PD protocol controller
최종 제품의 경우
-
Conversion TypeAC to DC
-
Input Voltage90 to 264 (AC) V
-
Output Voltage5|9|12|15|20 V
-
Output Current2.4@15V|3@5V|3@9V|3@12V|3@20V A
-
Output Power36 W
-
Efficiency91 %
-
TopologyFlyback- Quasi Resonant
피쳐링 부품 (15)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
CYPD3135-40LQXQT | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V T/R 40-Pin QFN EP | 구매 | |
|
|
CYPD3135-40LQXQ | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V 40-Pin QFN EP | 구매 | |
|
NCP43080DMTTWG | onsemi | AC to DC Switching Converters | Self-Supplied Monolithic AC to DC Switch | 구매 | |
|
|
CYPD3135-40LQXQES | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V T/R 40-Pin QFN EP | 구매 | |
|
|
CYPD3135-40LQXQT | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V T/R 40-Pin QFN EP | 구매 | |
|
NCP43080DMNTWG | onsemi | AC to DC Switching Converters | Self-Supplied Monolithic AC to DC Switch | 구매 | |
|
NCP43080DDR2G | onsemi | AC to DC Switching Converters | Self-Supplied Monolithic AC to DC Switch | 구매 | |
|
|
CYPD3135-40LQXIES | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V Tray 40-Pin QFN EP | 구매 | |
|
|
CYPD3135-40LQXQ | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V 40-Pin QFN EP | 구매 | |
|
|
CYPD3135-40LQXIT | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V T/R 40-Pin QFN EP | 구매 | |
|
EL1014-G | EVERLIGHT Electronics Co., Ltd | Transistor and Photovoltaic Output Photocouplers | DC-IN 1-CH Transistor DC-OUT 4-Pin SOP Tube | 구매 | |
|
|
CYPD3135-40LQXI | Infineon Technologies AG | USB Interface ICs | Full Speed Basic USB Type-C Controller USB 3.0 3.3V/5V Tray 40-Pin QFN EP | 구매 | |
