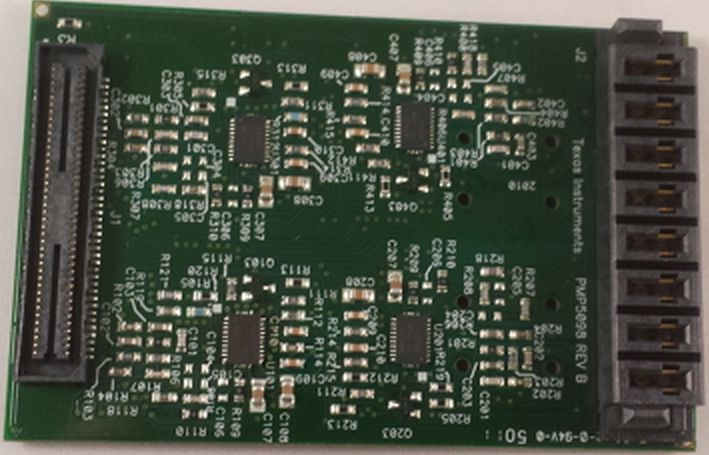

PMP5098, 20W, 384KHz Power Supply Reference Design for Xilinx Virtex-6 FPGAs
Texas Instruments이 부품 TPS40400RHL 을 사용하는 참조 설계
이미지
1 / 7
최종 제품의 경우
- Communications and Telecom
- Power Supplies
- Server AC to DC Supply
- Video and Imaging
Description
- PMP5098, reference design uses four TPS40400 PMBUs synchronous buck controllers to regulate and control the Xilinx Virtex-6 FPGA rails. The output voltages can be dynamically adjusted within a 400mV range with 4mV steps. Additional PMBUs control includes of Fsw, ILIM, SS time, UVLO, thermal shut-down, ENABLE, PGOOD, UVP, OVP, and OCP modes. The design is ideal for applications that require having design flexibility for the Virtex 6 four output voltages through PMBUs programming, configuration, and control
최종 제품의 경우
-
Conversion TypeDC to DC
-
Input Voltage5 V
-
Output Voltage1.1|1.1|1.2|1.8 V
-
Output Current1.5@1.2V|3.6@1.8V|3.45@1.1|5.1@1.1 A
-
Output Power20 W
-
TopologyBuck
피쳐링 부품 (2)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS40400RHLT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 2000kHz 24-Pin VQFN EP T/R | 구매 | |
|
|
TPS40400RHLR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 30A 2000kHz 24-Pin VQFN EP T/R | 구매 | |
