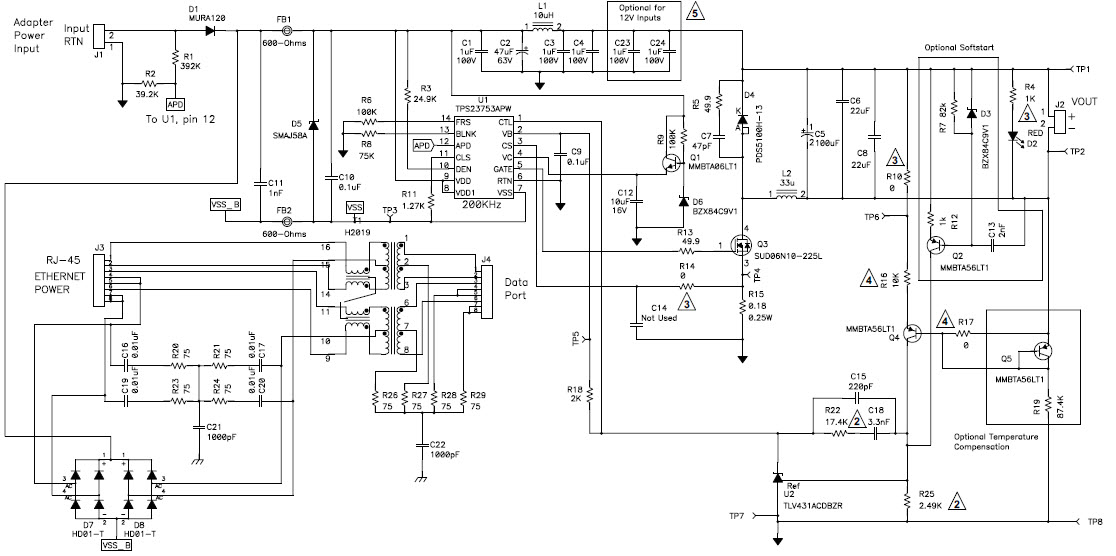

10W, 5V DC to DC Single Output Power Supply for Camera: Surveillance IP Network

Reference Design using part TPS23753APW by Texas Instruments

Enlarge
Image 1 / 1

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Intelligent Occupancy Sensing
  • PoE Security Camera
  • Power Over Ethernet
  • Surveillance Camera
  • VoIP Handset

Description

  • PWM Non-Isolated Buck Converter

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    12 to 57 V
  • Output Voltage
    5 V
  • Output Current
    2 A
  • Output Power
    10 W
  • Topology
    Buck

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
TLV431ACDBZRG4 Texas Instruments Voltage References V-Ref Adjustable 1.24V to 6V 15mA 3-Pin SOT-23 T/R Buy
TLV431ACDBZR Texas Instruments Voltage References V-Ref Adjustable 1.24V to 6V 15mA 3-Pin SOT-23 T/R Buy
TPS23753APW Texas Instruments Power Over Ethernet - PoE Controllers Power Over Ethernet PD Controller 0V 57V 13W 14-Pin TSSOP Buy
TPS23753APWR Texas Instruments Power Over Ethernet - PoE Controllers Power Over Ethernet PD Controller 0V 57V 13W 14-Pin TSSOP Buy
