DM164144, PIC16F18446 Curiosity Nano Evaluation Kit

Reference Design using part PIC16F18446T-I/GZ by Microchip Technology

Enlarge
Curiosity Nano Evaluation Kit Image (Sheet 1 of 5)
Curiosity Nano Evaluation Kit Overview (Sheet 2 of 5)
Top Level (Sheet 3 of 5)
Target MCU (Sheet 4 of 5)

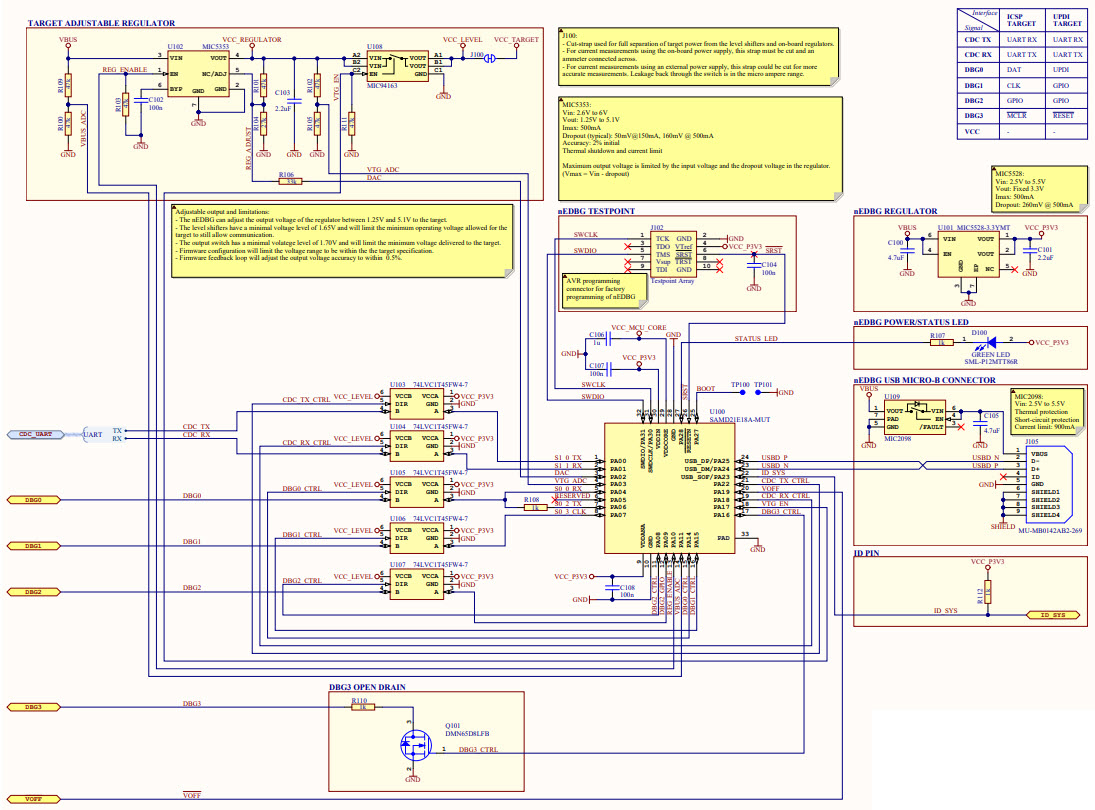

Debugger (Sheet 5 of 5)
Image 1 / 5

Manufacturer

Microchip Technology
  • Application Category
    Embedded System
  • Product Type
    Microcontroller
Buy

Associated Documents

For End Products

  • IoT Applications

Description

  • DM164144, PIC16F18446 Curiosity Nano Evaluation Kit offers complete support for your next design. With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC16F18446. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application

Key Features

  • Embedded System Type
    MCU
  • Family Name
    PIC16
  • Core Processor
    PIC
  • Platform
    Curiosity Nano

Featured Parts (7)

Featured Parts
Part Number Manufacturer Type Description
SAMD21E18A-MUT Microchip Technology Microcontrollers - MCUs MCU 32-bit ARM Cortex M0+ RISC 256KB Flash 3.3V 32-Pin QFN EP T/R Buy
MIC5528-3.3YMT-T5 Microchip Technology Linear Regulators LDO Regulator Pos 3.3V 0.5A 6-Pin TDFN EP T/R Buy
ATSAMD21E18A-MUT Microchip Technology Microcontrollers - MCUs MCU 32-bit ARM Cortex M0+ RISC 256KB Flash 3.3V 32-Pin QFN EP T/R Buy
MIC5353YMT-TR Microchip Technology Linear Regulators LDO Regulator Pos 1.25V to 5.5V 0.5A 6-Pin UDFN EP T/R Buy
74LVC1T45FW4-7 Diodes Incorporated Level Translators Voltage Level Translator 1-CH Bidirectional 6-Pin X2-DFN T/R Buy
MIC94163YCS-TR Microchip Technology Power Switches Power Switch Hi Side 1-OUT 3A 0.04Ohm 6-Pin WLCSP T/R Buy
PIC16F18446T-I/GZ Microchip Technology Microcontrollers - MCUs MCU 8-bit PIC RISC 28KB Flash 2.5V/3.3V/5V 20-Pin UQFN EP T/R Buy
