EVAL-ADuCM350EBZ, Evaluation Board for Evaluating the ADuCM350 16-Bit, Precision, Low Power Meter-on-Chip

Reference Design using part ADUCM350BBCZ by Analog Devices

Enlarge
EVAL-ADuCM350EBZ Image (Sheet 1 of 23)
EVAL-ADuCM350EBZ Specification (Sheet 2 of 23)
ADuCM350 Schematic (Sheet 3 of 23)
Digital Schematics 1 (Sheet 4 of 23)
Digital Schematics 2 (Sheet 5 of 23)
Analog Schematics 1 (Sheet 6 of 23)

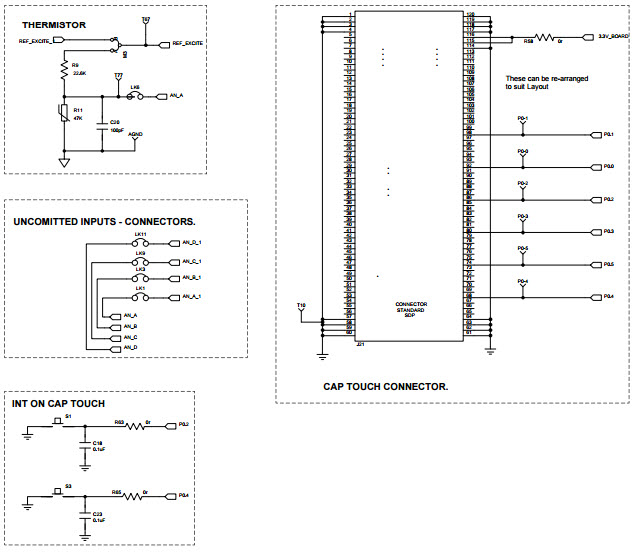

Analog Schematics 2 (Sheet 7 of 23)
Interface (Sheet 8 of 23)
Power (Sheet 9 of 23)
Switch Mux Configuration (Sheet 10 of 23)
Switch Mux Configuration - Sensor Hookup (Sheet 11 of 23)
4-Wire Bio Configuration Header Connections (Sheet 12 of 23)
4-Wire Bio Configuration Sensor Connections (Sheet 13 of 23)
4-Wire Bio Configuration Miscellaneous Connections (Sheet 14 of 23)
Audio Schematic (Sheet 15 of 23)
Audio Schematic (Sheet 16 of 23)
Display (LCD or TFT) Header Connector (Sheet 17 of 23)
TFT Connector Displaytech Screen and External Flash Memory (Sheet 18 of 23)
LCD Connector Schematic for VIM-828 LCD Segment Display (Sheet 19 of 23)
Breakout Board Connections for J1 on EVAL-ADuCM350EBZ with LK1 in Position B (Sheet 20 of 23)
Breakout Board Connections for J1 on EVAL-ADuCM350EBZ with LK1 in Position A (Sheet 21 of 23)
LCD Connector Schematic for VIM-828 LCD and Digital Header (Sheet 22 of 23)
GPIO Evaluation Schematic (Sheet 23 of 23)
Image 1 / 23

Manufacturer

Analog Devices
  • Application Category
    Embedded System
  • Product Type
    Microcontroller
Buy

Associated Documents

For End Products

  • Diagnostics, Monitoring and Therapy

Description

  • EVAL-ADuCM350EBZ, Evaluation Board for Evaluating the ADuCM350 16-Bit, Precision, Low Power Meter-on-Chip. The ADuCM350 is a 16 MHz ARM Cortex-M3 processor with a high precision AFE specifically designed for high precision data acquisition. The ADuCM350 has a 16-bit precision analog core with four dedicated voltage measurement channels and up to eight current measurement channels. It has an integrated complex impedance measurement system and uses an integrated parameterizable waveform generator to generate complex waveforms

Key Features

  • Embedded System Type
    MCU
  • Family Name
    ADuCM35x
  • Core Processor
    ARM Cortex-M3

Featured Parts (2)

Featured Parts
Part Number Manufacturer Type Description
ADUCM350 Analog Devices Microcontrollers - MCUs MCU 32-bit ARM Cortex M3 RISC 384KB Flash 3.3V 120-Pin CSP-BGA Tray Buy
ADUCM350BBCZ Analog Devices Microcontrollers - MCUs MCU 32-bit ARM Cortex M3 RISC 384KB Flash 3.3V 120-Pin CSP-BGA Tray Buy
