PMP4475, 48Vin, 5V / 2A, 1/8 Brick DC-DC Module Reference Design

Reference Design using part LM5020MMX-1 by Texas Instruments

Enlarge
PMP4475 Top Image (Sheet 1 of 3)

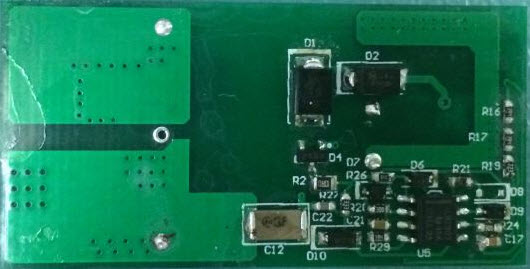

PMP4475 Bottom Image (Sheet 2 of 3)
PMP4475 Schematic (Sheet 3 of 3)
Image 1 / 3

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

Associated Documents

For End Products

  • Automotive and Transportation
  • Power Management
  • Telecommunications Equipment

Description

  • PMP4475, 48Vin, 5V / 2A, 1/8 Brick DC-DC Module Reference Design. The PMP4475 is a 5V / 2A reference design that implements a current mode controller LM5020. The input voltage range is 36V-72V with 48V typical. The efficiency is 85.1% at 48Vin and at full load. The design measures 51mm x 26mm x 12.5mm

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    36 to 72 V
  • Output Voltage
    5 V
  • Output Current
    2 A
  • Output Power
    10 W
  • Efficiency
    85.1 %
  • Topology
    Flyback- Non Sync
