Single 8:1 Analog Multiplexer for Communications/Telecom

Reference Design using part LTC1390 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Switches
  • Product Type
    Analog Switch

For End Products

  • Communications and Telecom
  • Data Acquisition System

Description

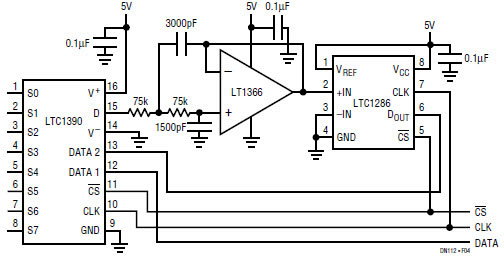

  • Connection between LTC1390 Output and LTC1286 Input Is Perfect Place for Signal Conditioning Circuits Such as LT1366-Based 2nd Order Active Low pass Filter

Key Features

  • Multiplexer Type
    Single 8:1

Featured Parts (22)

Featured Parts
Part Number Manufacturer Type Description
LTC1286CN8 Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin PDIP N Buy
LT1366CS8#TR Analog Devices Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±15V/30V 8-Pin SOIC N T/R Buy
LTC1286IN8#PBF Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin PDIP N Tube Buy
LT1366CN8 Analog Devices Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±15V/30V 8-Pin PDIP N Buy
LTC1286IN8 Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin PDIP N Buy
LT1366CS8#PBF Analog Devices Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±15V/30V 8-Pin SOIC N Tube Buy
LT1366CN8#PBF Analog Devices Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±15V/30V 8-Pin PDIP N Tube Buy
LTC1286CS8 Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin SOIC N Buy
LTC1286CS8#TRPBF Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin SOIC N T/R Buy
LT1366CS8 Analog Devices Operational Amplifiers - Op Amps Op Amp Dual Precision Amplifier R-R I/O ±15V/30V 8-Pin SOIC N Buy
LTC1286IS8 Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin SOIC N Buy
LTC1286IS8#TR Analog Devices Analog to Digital Converters - ADCs 1-Channel Single ADC SAR 12.5ksps 12-bit Serial 8-Pin SOIC N T/R Buy
