SLYT177, 2.5V, 3.3V DC to DC Multi-Output Power Supply
Reference Design using part TPS5602 by Texas Instruments
1 / 1
For End Products
- Power Supplies
Description

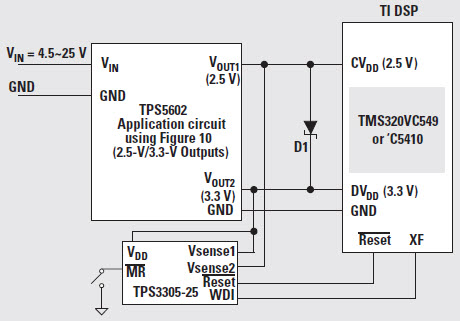

- SLYT177, 2.5V, 3.3V DC to DC Multi-Output Power Supply. TMS320VC549/VC5410 Power Supply Solution Using the TPS5602 for a Single Wide Input System (4.5 to 25V)
Key Features
-
Conversion TypeDC to DC
-
Input Voltage4.5 to 25 V
-
Output Voltage2.5|3.3 V
-
TopologyBuck
Featured Parts (8)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS3305-25DGN | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V/2.25V 2 Active High/Active Low 8-Pin HVSSOP EP Tube | Buy | |
|
TPS3305-25D | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V/2.25V 2 Active High/Active Low 8-Pin SOIC Tube | Buy | |
|
|
TPS3305-25DGNR | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V/2.25V 2 Active High/Active Low 8-Pin HVSSOP EP T/R | Buy | |
|
|
TPS3305-25DR | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V/2.25V 2 Active High/Active Low 8-Pin SOIC T/R | Buy | |
|
TPS5602IDBT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 30-Pin TSSOP Tube | Buy | |
|
|
TPS5602IDBTR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 30-Pin TSSOP T/R | Buy | |
|
|
TPS5602IDBTRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 30-Pin TSSOP T/R | Buy | |
|
|
TPS5602IDBTG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Dual-OUT Step Down 30-Pin TSSOP Tube | Buy | |
