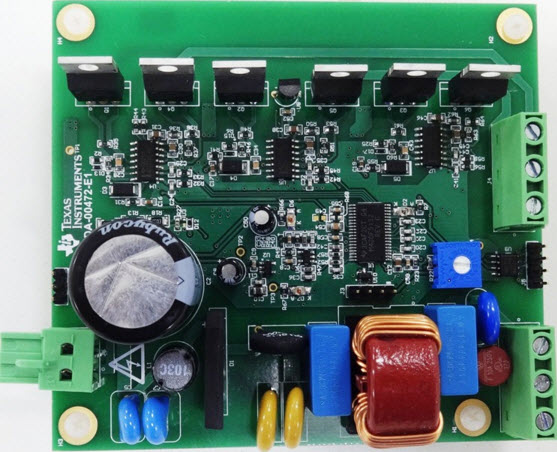

TIDA-00472, 230V, 250W High Efficiency BLDC Motor Drive w/DC Bus Voltage Ripple Compensation Reference Design
Reference Design using part UCC27714D by Texas Instruments
1 / 5
For End Products
- Blower
- Cooker
- Engine Cooling Fan
- FAN Motor
Description
- TIDA-00472, Discrete IGBT-based 3-Phase Inverter Reference Design for driving brushless DC (BLDC) motors rated up to 250W, for example, used in cooker hoods, using a sensor-less, trapezoidal control method. The design provides software implementation for DC bus voltage ripple compensation resulting in 30% reduction in the DC bus capacitor requirement and reduced overall BOM cost. The cycle-by-cycle overcurrent protection feature protects the power stage from large current spikes and the board can work up to 65C ambient. This design has also been tested to pass EN55014 standards for conducted emissions, Surge and EFT
Key Features
-
Motor TypeDC Motor
Featured Parts (6)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
LMT87LP | Texas Instruments | Temperature and Humidity Sensors | Temp Sensor Analog 3-Pin TO-92 T/R | Buy | |
|
TLV70433DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | Buy | |
|
|
OPA374AIDBVR | Texas Instruments | Operational Amplifiers - Op Amps | Op Amp Single Wideband Amplifier R-R I/O ±2.75V/5.5V 5-Pin SOT-23 T/R | Buy | |
|
MSP430F5132IDA | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 8KB Flash 2.5V/3.3V 38-Pin TSSOP Tube | Buy | |
|
ISO7421D | Texas Instruments | Digital Isolators | Digital Isolator CMOS 2-CH 1Mbps 8-Pin SOIC Tube | Buy | |
|
UCC27714D | Texas Instruments | Gate and Power Drivers | Driver 4A 2-OUT High Side/Low Side Full Brdg/Half Brdg Non-Inv 14-Pin SOIC Tube | Buy | |
