TIDA-00386, BLDC Ceiling Fan Controller Reference Design with Sensorless Sinusoidal Current Control

Reference Design using part DRV10983PWPR by Texas Instruments

Enlarge
TIDA-00386 Image (Sheet 1 of 4)
TIDA-00386 Block Diagram (Sheet 2 of 4)

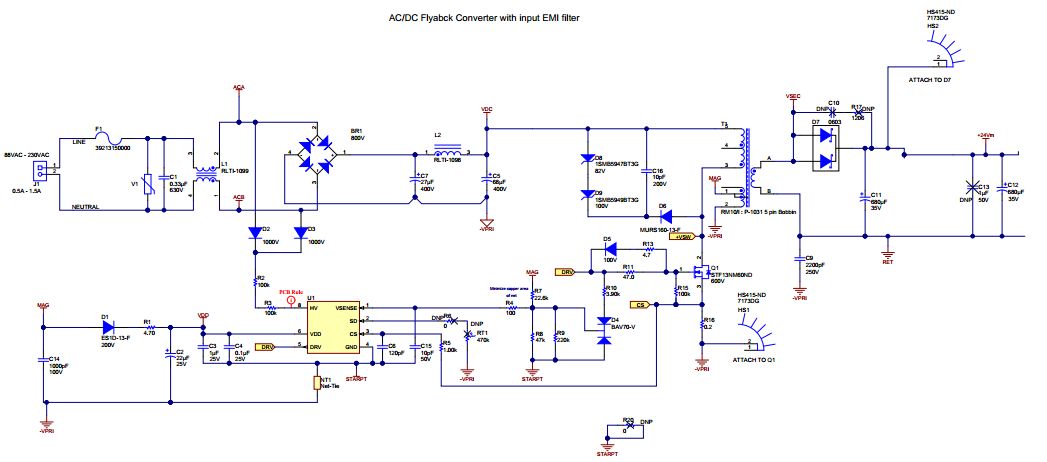

TIDA-00386 Schematic (Sheet 3 of 4)
TIDA-00386 Schematic (Sheet 4 of 4)
Image 1 / 4

Manufacturer

Texas Instruments
  • Application Category
    Motor Control
  • Product Type
    DC Motor Control

Associated Documents

For End Products

  • Fan Controller
  • FAN Motor
  • HVAC

Description

  • TIDA-00386, Reference Design is a complete solution for a brushless DC ceiling fan controller that runs from AC power. It features the DRV10983 24V three-phase motor driver to drive motors with sinusoidal current and sensorless control. The UCC28630 converts 90 - 265VAC into 24VDC. The MSP430G2201 value-line processor decodes infrared signals for speed control. The included firmware allows easy integration with standard infrared remotes based on the NEC transmission protocol

Key Features

  • Motor Type
    DC Motor

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
MSP430G2201IPW14R Texas Instruments Microcontrollers - MCUs MCU 16-bit MSP430 RISC 2KB Flash 2.5V/3.3V 14-Pin TSSOP T/R Buy
UCC28630D Texas Instruments AC to DC Switching Converters AC to DC Switching Converter Flyback 130kHz Tube 7-Pin SOIC Buy
DRV10983PWPR Texas Instruments Motor Controller and Driver ICs Motor Driver 24V 24-Pin HTSSOP EP T/R Buy
