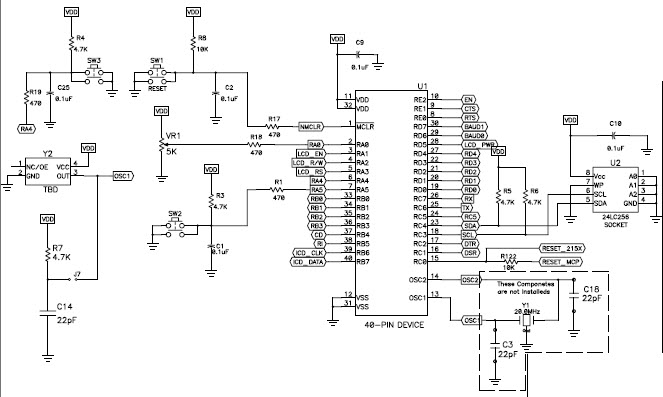

MCP215X/40, Development Board for the MCP215X and MCP2140 IrDA Standard Protocol Stack Controller device
Microchip Technology이 부품 PIC16F877-04I/P 을 사용하는 참조 설계
이미지
1 / 4
최종 제품의 경우
- Remote Control
- Remote Keyless Entry
- Telemetry
Description
- MCP215X/40, Development Board for the MCP215X and MCP2140 IrDA Standard Protocol Stack Controller device. The MCP215X and MCP2140 IrDA Standard Protocol Stack Controller devices allow the system designer to implement a low-cost, wireless IR port in any application providing support for the IrDA standard protocol stack and IrDA standard bit encoding/decoding
최종 제품의 경우
-
Data Rate115.2 Kbit/s
피쳐링 부품 (25)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
ATS111SM | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 60Ohm 2-Pin HC-49/US SM SMD Bulk | 구매 | |
|
ATS111-E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 60Ohm 2-Pin HC-49/US Thru-Hole Bulk | 구매 | |
|
|
ATS111CSM-1 | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 32pF FUND 60Ohm 2-Pin HC-49/US SM SMD T/R | 구매 | |
|
|
ATS111A-E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) Series FUND 60Ohm 2-Pin HC-49/US Thru-Hole Bulk | 구매 | |
| ATS111-INS | CTS Corporation | Crystals | Surface Mount Quartz Crystal | 구매 | ||
|
|
ATS111 | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 60Ohm 2-Pin HC-49/US Thru-Hole Bulk | 구매 | |
|
|
ATS111B | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 60Ohm 2-Pin HC-49/US Thru-Hole Bulk | 구매 | |
|
ECS-100AX-200 | ECS, Inc. International | TH Crystal Oscillators | Oscillator XO 20MHz ±100ppm TTL 60% 5V 4-Pin Metal DIP Thru-Hole Tube | 구매 | |
|
|
ATS111SM-1E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 60Ohm 2-Pin HC-49/US SM SMD T/R | 구매 | |
|
|
ATS111CSM-1E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 32pF FUND 60Ohm 2-Pin HC-49/US SM SMD T/R | 구매 | |
|
|
ATS111BSM-1E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 60Ohm 2-Pin HC-49/US SM SMD T/R | 구매 | |
|
|
ATS111B-E | CTS Corporation | Crystals | Crystal 11.0592MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 60Ohm 2-Pin HC-49/US Thru-Hole Bulk | 구매 | |
