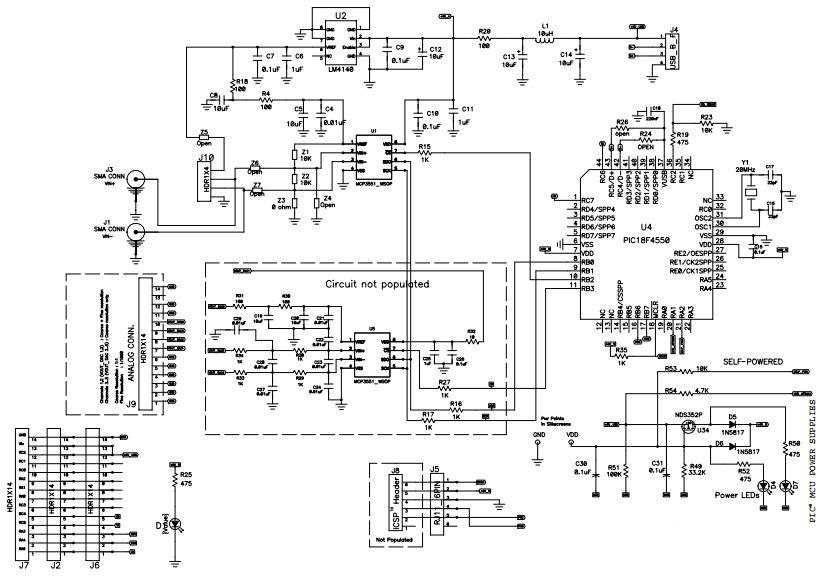

MCP3551DM-PCTL, Demonstration Board for the MCP3551, 22-Bit performance Delta-Sigma ADC
Microchip Technology이 부품 MCP3551-E/MS 을 사용하는 참조 설계
이미지
1 / 2
연관된 문서
최종 제품의 경우
- Data Acquisition System
- Instrumentation and Measurement
- Outdoor Temperature Sensor
- Strain Gauge
- White Goods
Description
- MCP3551DM-PCTL, Demonstration Board for the MCP3551 Delta-Sigma ADC Demo Board is designed to demonstrate Microchip Technology's MCP3551 22-Bit Delta-Sigma Analog-to-Digital (ADC) Converter performance using Data View software installed on a PC. The demo board can be used with MPLAB ICD2, PICkit 1 Flash Starter Kit, or PICkit 2 for developing demonstration/evaluation firmware. Optionally, a second installed MCP3551 can be used with and optional stimulus board (sold separately). The board is designed to evaluate the MCP3551 with minimum Printed Circuit Board (PCB) noise
최종 제품의 경우
-
ADC Resolution22 Bit
피쳐링 부품 (5)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
LM4140CCM-4.1/NOPB | Texas Instruments | Voltage References | V-Ref Precision 4.096V 8mA Automotive 8-Pin SOIC Tube | 구매 | |
|
ECS-200-20-5PX-TR | ECS, Inc. International | Crystals | Crystal 20MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 30Ohm 2-Pin HC-49/USX SMD T/R | 구매 | |
|
|
LM4140CCM-4.1/NOPB | Texas Instruments | Voltage References | V-Ref Precision 4.096V 8mA Automotive 8-Pin SOIC Tube | 구매 | |
|
PIC18F4550IPT | 8-bit MCU | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 32KB Flash 3.3V/5V 44-Pin TQFP Tray | 구매 | |
|
MCP3551-E/MS | Microchip Technology | Analog to Digital Converters - ADCs | 1-Channel Single ADC Delta-Sigma 14sps 21.9-bit Serial Automotive AEC-Q100 8-Pin MSOP Tube | 구매 | |
