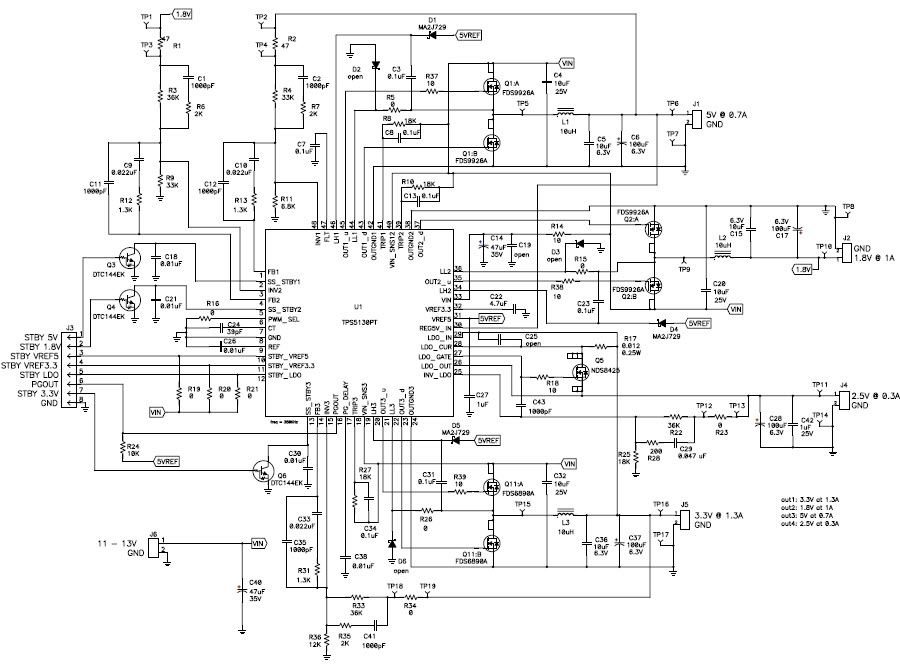

PMP2281, Sync Buck for Set Top Box (3.3V @ 1.3A, 1.8V @ 1A, 5V @ 0.7A, 2.5V @ 0.3A)
Texas Instruments이 부품 TPS5130PT 을 사용하는 참조 설계
이미지
1 / 1
연관된 문서
최종 제품의 경우
- Computers and Peripherals
- Consumer Electronics
- Notebook
- Set-Top Box
Description
- PMP2281, Sync Buck for Set Top Box (3.3V @ 1.3A, 1.8V @ 1A, 5V @ 0.7A, 2.5V @ 0.3A)
최종 제품의 경우
-
Conversion TypeDC to DC
-
Output Voltage1.8|3.3|2.5|5 V
-
Output Current0.3@2.5V|0.7@5V|1@1.8V|1.3@3.3V A
-
TopologyBuck
피쳐링 부품 (4)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS5130PTRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Quad-OUT Step Down 15A 500kHz 48-Pin LQFP T/R | 구매 | |
|
|
TPS5130PTR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Quad-OUT Step Down 15A 500kHz 48-Pin LQFP T/R | 구매 | |
|
|
TPS5130PTG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Quad-OUT Step Down 15A 500kHz 48-Pin LQFP Tray | 구매 | |
|
|
TPS5130PT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Quad-OUT Step Down 15A 500kHz 48-Pin LQFP Tray | 구매 | |
