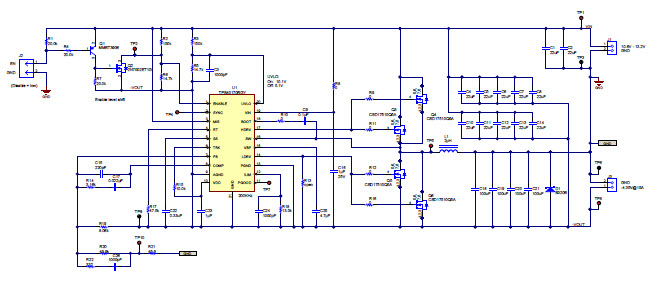

PMP8928, Positive 12V to -4.35V/15A buck-boost converter
Texas Instruments이 부품 TPS40170RGY 을 사용하는 참조 설계
이미지
1 / 1
최종 제품의 경우
- Communications and Telecom
- Computers and Peripherals
- Industrial
Description
- PMP8928, Positive 12V to -4.35V/15A buck-boost converter. Reference design uses the TPS40170 sync buck controller to generate a -4.35V/15A output from a +12V input voltage. This circuit achieves greater than 94% efficiency at full load
최종 제품의 경우
-
Conversion TypeDC to DC
-
Input Voltage10.8 to 13.2 V
-
Output Voltage-4.35 V
-
Output Current15 A
-
Output Power65.25 W
-
TopologyBuck Boost- Synchronous|Buck Boost- Inverting
피쳐링 부품 (2)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS40170RGYT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 20A 660kHz 20-Pin VQFN EP T/R | 구매 | |
|
|
TPS40170RGYR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 20A 660kHz 20-Pin VQFN EP T/R | 구매 | |
