DK-DEV-4S100G5NES, 100G Development Kit, Stratix IV GT Edition

使用 Intel 的 EP4S100G5F45I1N 的参考设计

放大
DK-DEV-4S100G5NES Image (Sheet 1 of 41 )
Block Diagram (Sheet 2 of 41 )
XFP Power (Sheet 3 of 41 )
Power 1 (DC Input, 3.3V, 12V, VCCD_PLL) (Sheet 4 of 41 )
Power 2 (2.5V, VTT, AUX, VCCA_PLL) (Sheet 5 of 41 )
Power 3 (VCC, VCCHIP, VCCPT) (Sheet 6 of 41 )
Power 4 (1.5V) (Sheet 7 of 41 )
Power 5 (Transciever Linear Regulators) (Sheet 8 of 41 )

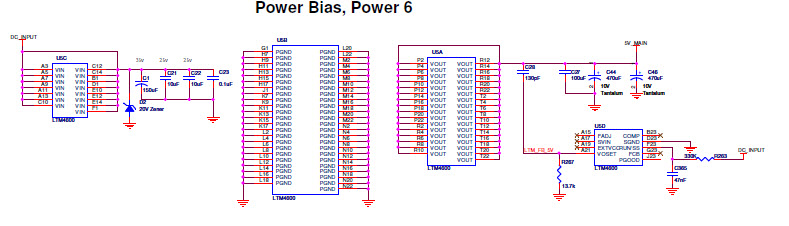

Power Bias (5V_MAIN) (Sheet 9 of 41 )
Power Monitor 1 (Sheet 10 of 41 )
Power Monitor 2 (Sheet 11 of 41 )
EPM240 Embedded USB Blaster (Sheet 12 of 41 )
MAX II Banks 1, 2, & Power (Sheet 13 of 41 )
MAX II Banks 3 & 4 (Sheet 14 of 41 )
Flash/SRAM (Sheet 15 of 41 )
PLL (Sheet 16 of 41 )
Clock Circuitry 1 (Sheet 17 of 41 )
Clock Circuitry 2 (Sheet 18 of 41 )
Stratix IV GT Clocks (Sheet 19 of 41 )

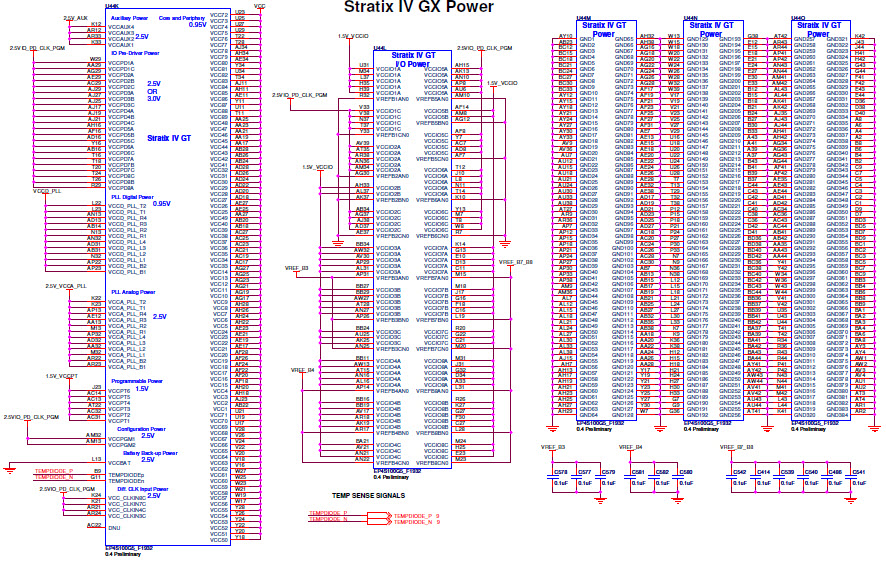

Stratix IV GT Power (Sheet 20 of 41 )
Stratix IV GT Banks 1 & 2 (Sheet 21 of 41 )
Stratix IV GT Banks 3 & 4 (Sheet 22 of 41 )
Stratix IV GT Banks 5 & 6 (Sheet 23 of 41 )
Stratix IV GT Banks 7 & 8 (Sheet 24 of 41 )
Stratix IV GT Left XCVRs (Sheet 25 of 41 )
Stratix IV GT Right XCVRs (Sheet 26 of 41 )
QDRII Ports A & B (Sheet 27 of 41 )
QDRII Ports C & D (Sheet 28 of 41 )
QDRII Termination (Sheet 29 of 41 )
DDR3 Ports A & B (Sheet 30 of 41 )
DDR3 Ports C & D (Sheet 31 of 41 )
QSFP Interface (Sheet 32 of 41 )
SFP+ Port A with EDC (Sheet 33 of 41 )
SFP+ Port B (Sheet 34 of 41 )
Transceiver Power & CFP (Sheet 35 of 41 )
10/100/1000 Ethernet (Sheet 36 of 41 )
Interlaken Interface (Sheet 37 of 41 )
User I/O (Sheet 38 of 41 )
Decoupling (Sheet 39 of 41 )
CFP Decoupling (Sheet 40 of 41 )
Stratix IV GT Config (Sheet 41 of 41 )
Image 1 / 41

供应商

Intel
  • 应用类别
    嵌入式系统
  • 产品类别
    Field-Programmable Gate Array

相关文件

依据最终产品

  • Embedded PC

说明

  • DK-DEV-4S100G5NES, Stratix IV GT 100G development board provides a hardware platform for evaluating the performance and signal integrity features of the Stratix IV GT devices

主要特色

  • Embedded System Type
    FPGA
  • Family Name
    Stratix IV GT

Featured Parts (33)

Featured Parts
零件编号 供应商 类别 说明
LTC2418CGN#PBF Analog Devices Analog to Digital Converters - ADCs 16-Channel Single ADC Delta-Sigma 7.5sps 24-bit Serial 28-Pin SSOP N Tube 买入
TPS51100DGQR Texas Instruments Special Purpose Voltage Regulators DDR Memory Termination Regulator 4.75V to 5.25V 10-Pin HVSSOP EP T/R 买入
LTM4627EV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.6V to 5V 15A 133-Pin LGA Tray 买入
ABM3-25.000MHZ-B2-T Abracon Crystals Crystal 25MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 30Ohm 2-Pin Mini-CSMD T/R 买入
NB6L11SMNG onsemi Clock Buffers and Drivers Clock Fanout Buffer 2-OUT 1-IN 1:2 16-Pin QFN EP Tube 买入
ABL-6.000MHZ-B2 Abracon Crystals Crystal 6MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 100Ohm 2-Pin HC-49/US Thru-Hole Bulk 买入
LT3010EMS8E#PBF Analog Devices Linear Regulators LDO Regulator Pos 1.275V to 60V 0.05A 8-Pin MSOP EP Tube 买入
LTM4600EV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.6V to 5V 10A 104-Pin LGA Tray 买入
MIC69502WR-TR Microchip Technology Linear Regulators LDO Regulator Pos 0.5V 5A 8-Pin(7+Tab) SPAK T/R 买入
LT1374CFE#PBF Analog Devices DC to DC Converter and Switching Regulator Chip Conv DC-DC 5V to 25V Synchronous Step Down Single-Out 2.42V to 21.5V 4.5A 16-Pin TSSOP EP Tube 买入
LTM4601EV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.6V to 5V 12A 118-Pin LGA Tray 买入
LTM8023EV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 0.8V to 10V 2A 50-Pin LGA Tray 买入
