MIKROE-2479, LED Flash CLICK Board based on CAT3224 High-Power Flash LED Driver
使用 MikroElektronika 的 CAT3224HV3-GT2 的参考设计
1 / 4
依据最终产品
- Flashlight
说明

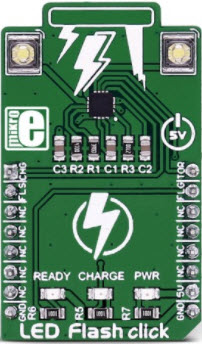

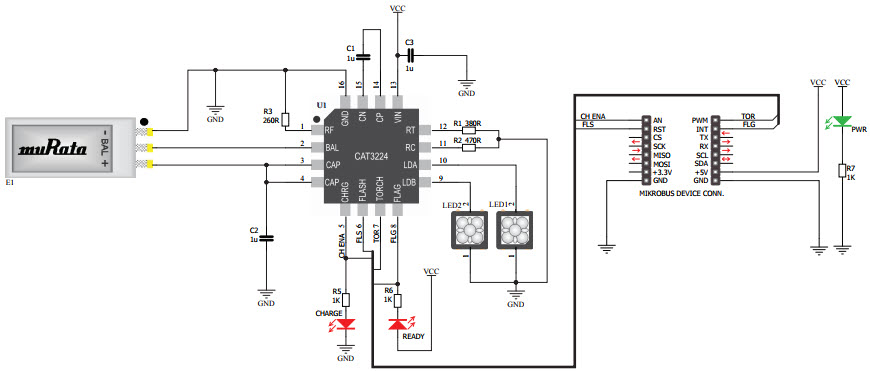

- MIKROE-2479, LED Flash CLICK Board functions as a high power LED flash, and carries the CAT3224 flash LED driver. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over the following pins on the mikroBUS line: AN, RST, PWM, and INT
主要特色
-
Input Voltage5 V
-
Number of Derived Elements2
Featured Parts (1)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
CAT3224HV3-GT2 | onsemi | LED Drivers | LED Driver 2 Segment 16-Pin TQFN T/R | 买入 | |
