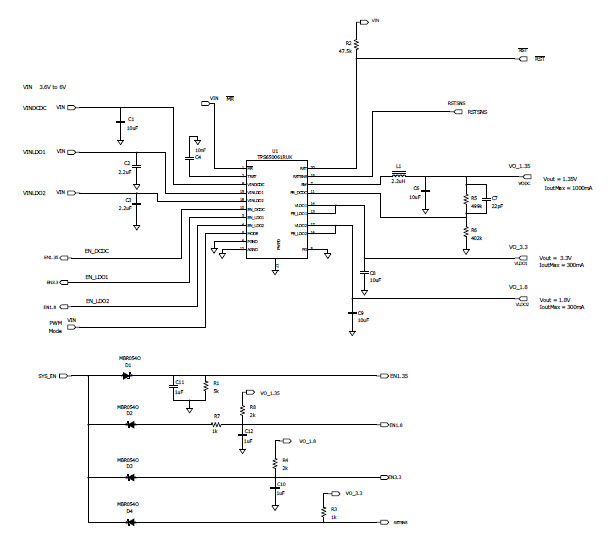

PR2065.1, Powering the TMS320DM368 with the TPS650061
使用 Texas Instruments 的 TPS650061R 的参考设计
1 / 1
相关文件
依据最终产品
- Cellular Phone
- Personal Digital Assistant
- Portable Media Player
- Processor Power Management
- Smart Phone
说明
- PR2065.1, This document details the design considerations of a low-cost power solution for the TMS320DM368 low-power application processor with a TPS650061, three-rail Power Management Unit (PMU) or Power Management Integrated Circuit (PMIC)
主要特色
-
Conversion TypeDC to DC
-
Input Voltage3.6 to 6 V
-
Output Voltage1.35|1.8|3.3 V
-
Output Current0.3@1.8V|0.3@3.3V|1@1.35V A
-
TopologyBuck
Featured Parts (2)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS650061RUKT | Texas Instruments | PMIC Solutions | Power Management Multi-Channel IC 2.3V to 6V 20-Pin WQFN EP T/R | 买入 | |
|
|
TPS650061RUKR | Texas Instruments | PMIC Solutions | Power Management Multi-Channel IC 2.3V to 6V 20-Pin WQFN EP T/R | 买入 | |
