STEVAL-ISA080V1, 90 W-HB LLC resonant converter based on the L6585DE combo IC

使用 STMicroelectronics 的 L6585DE 的参考设计

Image 1 / 1

供应商

应用类别
电源
产品类别
交流到直流单输出电源

相关文件

依据最终产品

Electronic Ballast
Lighting

说明

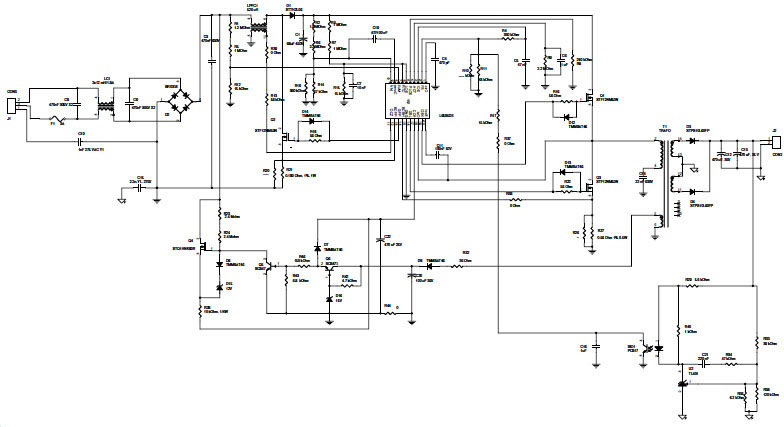

STEVAL-ISA080V1, 90 W-HB LLC resonant converter based on the L6585DE combo IC. This application note describes the performance of a 90 W, wide range mains, power factor corrected AC-DC power supply demonstration board. The architecture is based on a two-stage approach: a front-end PFC pre-regulator and a down-stream multi-resonant half bridge converter

主要特色

Conversion Type

AC to DC
Input Voltage

90 to 265 (AC) V
Output Voltage

19 V
Output Current

4.7 A
Output Power

90 W
Efficiency

92.14 %
Topology

Half Bridge- LLC|Half Bridge- Resonant
