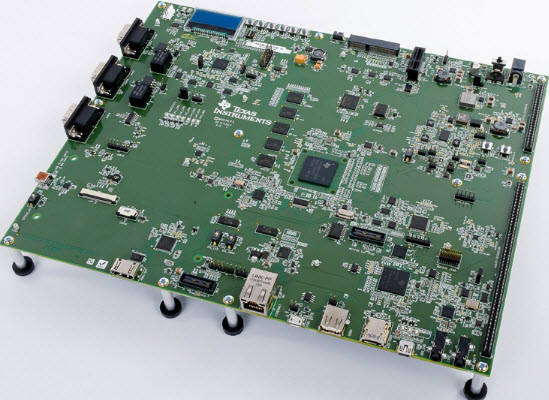

TIDEP0068, PCI Express PCB Design Considerations Reference Design for the 66AK2G02 General Purpose GP EVM
使用 Texas Instruments 的 66AK2E02ABDA4 的参考设计
1 / 50
依据最终产品
- Audio Processing
- AV Receiver
- Home Theater
- Soundbar
说明
- TIDEP0068, PCI Express PCB Design Considerations Reference Design for the 66AK2G02 General Purpose EVM. PCI-Express provides for low pin-count, high reliability and high-speed with data transfer at rates of up to 5.0 Gbps per lane, per direction and an PCIe module is included on the 66AK2G02 DSP + ARM Processor system on chip (SoC). This PCIe PCB design considerations reference design helps developers optimize the printed circuit board (PCB) design by providing best-practice PCB for the PCIe portion of the 66AK2G02 Processor SoC
主要特色
-
Embedded System TypeDSP
-
Family Name66AK2E
-
Core ProcessorARM Cortex-A15
Featured Parts (68)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
LM5060MM/NOPB | Texas Instruments | Hot Swap Controllers | Hot Swap Controller 1-CH 65V N-Channel Positive Voltage 10-Pin VSSOP T/R | 买入 | |
|
CX3225SB25000D0FLJZZ | Kyocera | Crystals | Crystal 25MHz ±10ppm (Tol) ±15ppm (Stability) 8pF FUND 100Ohm 4-Pin CSMD | 买入 | |
|
SN74LVC1G08DBVR | Texas Instruments | Logic Gates | AND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R | 买入 | |
|
TPS650006RTET | Texas Instruments | PMIC Solutions | Power Management Multi-Channel IC 2.3V to 6V 16-Pin WQFN EP T/R | 买入 | |
|
SN74LVC1G11DCKR | Texas Instruments | Logic Gates | AND Gate 1-Element 3-IN CMOS 6-Pin SC-70 T/R | 买入 | |
|
TPS54429ERSAR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 7V to 18V Synchronous Step Down Single-Out 0.76V to 5.5V 4.5A 16-Pin VQFN EP T/R | 买入 | |
|
TLV320AIC3106IRGZT | Texas Instruments | Audio CODECs | General Purpose Audio Codec 2ADC / 2DAC Ch 48-Pin VQFN EP T/R | 买入 | |
|
SN74LVC1G04DCKR | Texas Instruments | Inverters and Schmitt Triggers | Inverter 1-Element CMOS 5-Pin SC-70 T/R | 买入 | |
|
|
TPS71712DCKR | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.2V 0.15A 5-Pin SC-70 T/R | 买入 | |
|
|
TLV431ACDBVR | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 5-Pin SOT-23 T/R | 买入 | |
|
TCA9555RTWR | Texas Instruments | GPIO Expanders | I2C/SMBus Interface 400kHz 5.5V 24-Pin WQFN EP T/R | 买入 | |
|
TPS2051BD | Texas Instruments | USB Power Switches | Power Switch Hi Side 3-OUT 0A 0.075mOhm 8-Pin SOIC Tube | 买入 | |
