Wireless thermostat with SAM4LC Reference Design
使用 Microchip Technology 的 ATSAM4LC2CA 的参考设计
1 / 1
依据最终产品
- Building Automation
- Industrial Automation HMI
说明

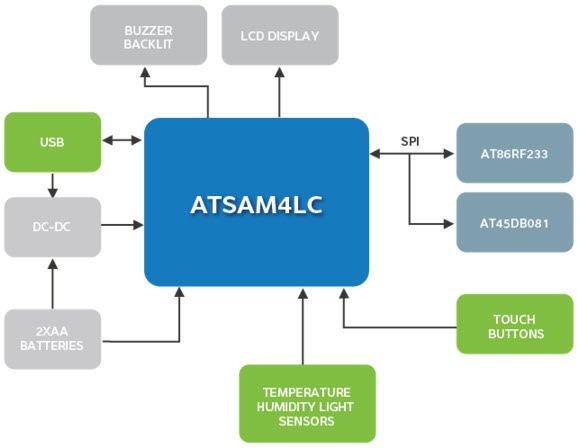

- Wireless thermostat with SAM4LC Reference Design. This reference design is a complete wireless thermostat using ATSAM4LC microcontroller and AT86RF233 2.4GHz transceiver. The user interface consists of 6 touch buttons and a custom segment LCD with backlight. Users can change thermostat settings for every day of the week, with a granularity of 6 hours. Communication with the HVAC system is done by Atmel Lightweight Mesh stack
主要特色
-
Embedded System TypeMCU
-
Family NameSAM4L
-
Core ProcessorSMART ARM
Featured Parts (6)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
AT86RF233-ZFR | Microchip Technology | RF Transceivers | RF Transceiver 3.3V 32-Pin QFN EP T/R | 买入 | |
|
|
AT86RF233-ZUR | Microchip Technology | RF Transceivers | RF Transceiver 3.3V 32-Pin QFN EP T/R | 买入 | |
|
|
AT86RF233-ZF | Microchip Technology | RF Transceivers | RF Transceiver 3.3V 32-Pin QFN EP Tray | 买入 | |
|
|
AT86RF233-ZU | Microchip Technology | RF Transceivers | RF Transceiver 3.3V 32-Pin QFN EP Tray | 买入 | |
|
ATSAM4LC2CA-AU | Microchip Technology | Microcontrollers - MCUs | MCU 32-bit ARM Cortex M4 RISC 128KB Flash 1.8V/2.5V/3.3V 100-Pin TQFP Tray | 买入 | |
|
ATSAM4LC2CA-CFU | Microchip Technology | Microcontrollers - MCUs | MCU 32-bit ARM Cortex M4 RISC 128KB Flash 1.8V/2.5V/3.3V 100-Pin VFBGA Tray | 买入 | |
