CC2541KEYFOB-RD, CC2541 Keyfob Reference Design

Reference Design using part CC2541 by Texas Instruments

Enlarge

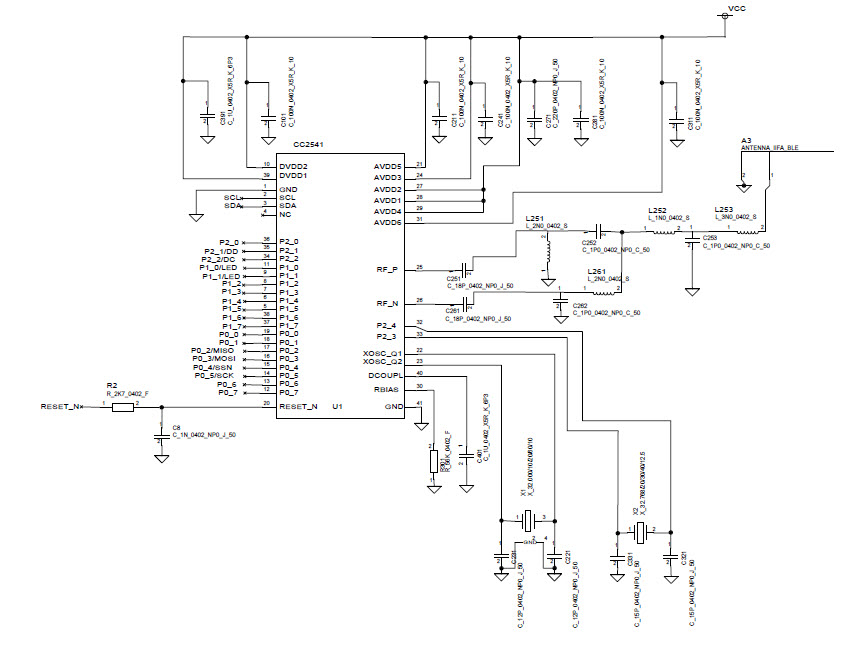

CC2541 Schematic (Sheet 1 of 2)
CC2541 Schematic (Sheet 2 of 2)
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Wireless Communication
  • Product Type
    Wireless Systems

Associated Documents

For End Products

  • Access Control
  • Consumer Electronics Control
  • Health System
  • Industrial
  • Portable Consumer Electronics
  • Safety
  • Safety System
  • Security System

Description

  • CC2541KEYFOB-RD, CC2541 Keyfob Reference Design. The Bluetooth Smart Keyfob is a small-form factor, coin-cell powered mobile accessory with buttons, buzzer, LEDs and accelerometer, demonstrating the use of several of the BLE GATT service profiles, like the proximity and battery service profiles

Key Features

  • Operating Frequency
    2400 MHz

Featured Parts (11)

Featured Parts
Part Number Manufacturer Type Description
TPS62730DRYT Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 1.9V to 3.9V Synchronous Step Down Single-Out 2.1V 0.1A 6-Pin USON T/R Buy
TPS62730DRYR Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 1.9V to 3.9V Synchronous Step Down Single-Out 2.1V 0.1A 6-Pin USON T/R Buy
TPS62730DRY Texas Instruments DC to DC Converter and Switching Regulator Chip Conv DC-DC 1.9V to 3.9V Synchronous Step Down Single-Out 2.1V 0.1A 6-Pin USON T/R Buy
CC2541F256RHAR Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps 40-Pin VQFN EP T/R Buy
CC2541F256RHAT Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps 40-Pin VQFN EP T/R Buy
CC2541F256TRHATQ1 Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps Automotive AEC-Q100 40-Pin VQFN EP T/R Buy
CC2541F256TRHARQ1 Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps Automotive AEC-Q100 40-Pin VQFN EP T/R Buy
CC2541F128RHAT Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps 40-Pin VQFN EP T/R Buy
CC2541SRHAT Texas Instruments Bluetooth SimpleLink 2.4 GHz Bluetooth Low Energy Wireless Network Processor Buy
CC2541F128RHAR Texas Instruments Bluetooth Bluetooth v4.0 (BLE) SMART SOC Class II 2Mbps 40-Pin VQFN EP T/R Buy
CC2541SRHAR Texas Instruments Bluetooth SimpleLink 2.4 GHz Bluetooth Low Energy Wireless Network Processor Buy
