LMZ14202HEVAL/NOPB, Evaluation Board for Simple Switcher power modules for high output voltage

Reference Design using part LMZ14202HTZ by Texas Instruments

Enlarge

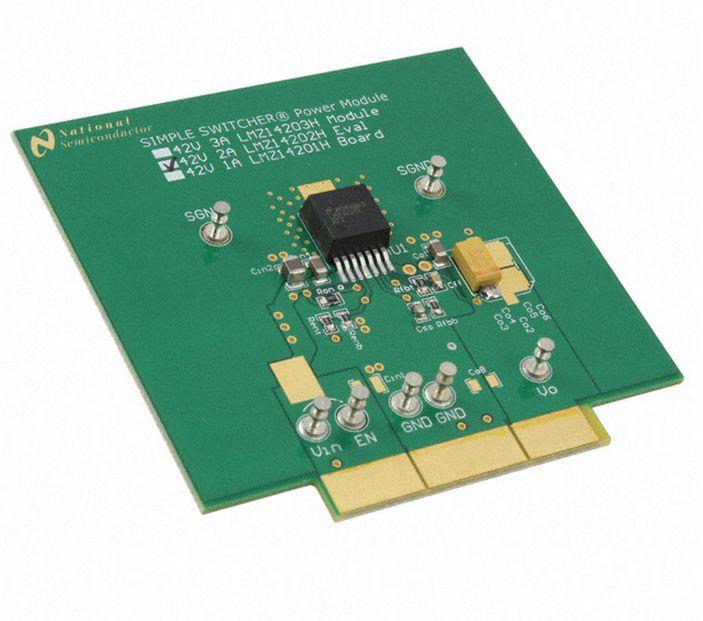

LMZ14202HEVAL/NOPB Image
LMZ14202HEVAL/NOPB Schematic
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

For End Products

  • Power Supplies

Description

  • LMZ14202HEVAL/NOPB, Evaluation Board for Simple Switcher power modules for high output voltage are easy-to-use DC-DC solutions capable of driving up to a 3A load with exceptional power conversion efficiency, output voltage accuracy, line and load regulation. The evaluation board is configured for 12V output voltage from 15V to 42V input. The precision enable input allows for programmable UVLO of the input supply

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    15 to 42 V
  • Output Voltage
    12 V
  • Output Current
    2 A
  • Efficiency
    97 %

Featured Parts (6)

Featured Parts
Part Number Manufacturer Type Description
LMZ14202HTZX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP T/R Buy
LMZ14202HTZE/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP Tube Buy
LMZ14202HTZ/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP T/R Buy
LMZ14202HTZ/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP T/R Buy
LMZ14202HTZE/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP Tube Buy
LMZ14202HTZX/NOPB Texas Instruments DC to DC Converter and Switching Regulator Module Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP T/R Buy
