STEVAL-ISV012V1, Demonstration Board using L6924D up to 5 W solar battery charger for single-cell Li-ion and Li-Pol battery

Reference Design using part L6924D by STMicroelectronics

Enlarge
STEVAL-ISV012V1 Image (Sheet 1 of 6)
L6924D circuit schematic (Sheet 2 of 6)
SPV1040, MPPT boost circuit schematic (Sheet 3 of 6)
Supply section schematic (Sheet 4 of 6)
MCU, Battery Section (Sheet 5 of 6)

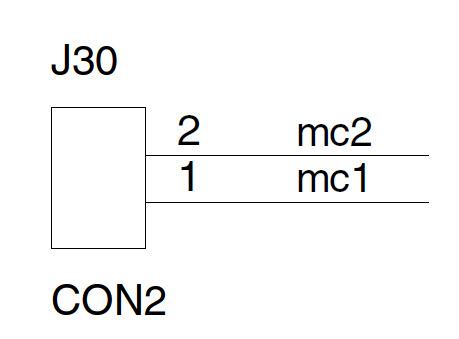

L6924, Li-ion battery charger (Sheet 6 of 6)
Image 1 / 6

Manufacturer

STMicroelectronics
  • Application Category
    Battery Management
  • Product Type
    Battery Charger
Buy

Associated Documents

For End Products

  • Cellular Phone
  • Digital Camera
  • Personal Digital Assistant

Description

  • STEVAL-ISV012V1, Demonstration Board using SPV1040 solar voltage boost converter and L6924D single cell Li-ion battery charger. The SPV1040 device is a high efficiency, low power, low voltage, monolithic step-up converter with an input voltage range from 0.3 V to 5.5 V, and is capable of maximizing the energy generated by even a single solar cell. The L6924D device is a fully monolithic battery charger dedicated to single cell Lithium ion/Lithium-ion polymer battery packs. It is the ideal solution for space-limited applications such as PDAs, handheld equipment, cellular phones, and digital cameras

Key Features

  • Battery Type
    Lithium-Ion|Lithium-Polymer
  • Input Voltage
    0.3 to 5.5 V
  • Output Voltage
    4.1|4.2 V
  • Number of Battery Cells
    1

Featured Parts (3)

Featured Parts
Part Number Manufacturer Type Description
SPV1040T STMicroelectronics Battery Management ICs Battery Charger 8-Pin TSSOP Tube Buy
SPV1040TTR STMicroelectronics Battery Management ICs Battery Charger 8-Pin TSSOP T/R Buy
L6924D013TR STMicroelectronics Battery Management ICs Battery Charger Li-Ion/Li-Pol 1000mA 4.2V 16-Pin VFQFPN EP T/R Buy
