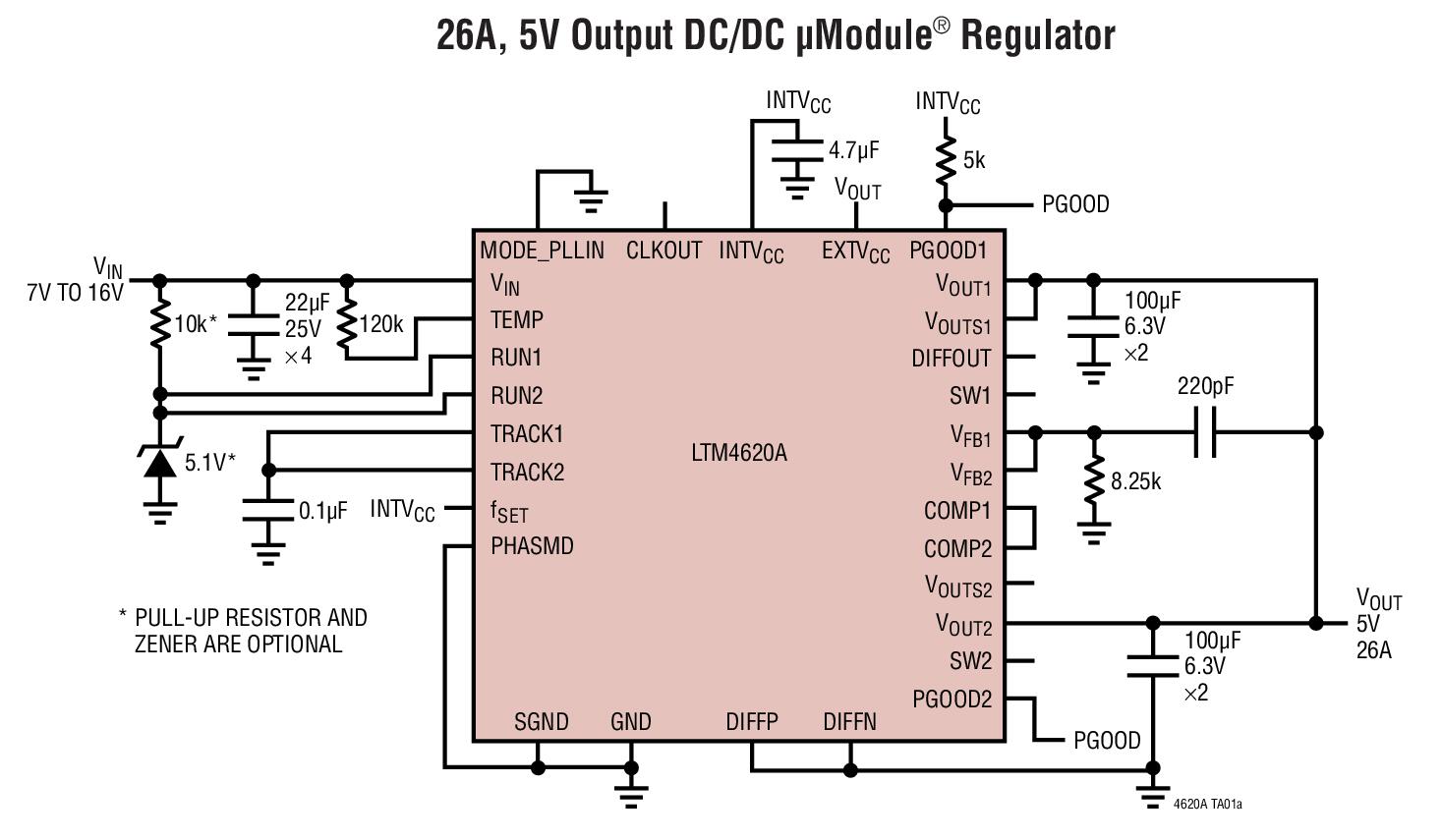

Typical Application for LTM4620A - Dual 13A or Single 26A DC/DC module Regulator

Reference Design using part LTM4620A by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Industrial Applications
  • Network Equipment
  • Storage System
  • Telecom System

Description

  • Typical Application for LTM4620A - Dual 13A or Single 26A DC/DC module Regulator. The LTM4620A is a complete dual 13A, or single 26A output switching mode DC/DC power supply with wider VOUT range and higher efficiency than the LTM4620. Included in the package are the switching controller, power FETs, inductors and all supporting components. Operating from an input voltage range of 4.5V to 16V, the LTM4620A supports two outputs each with an output voltage range of 0.6V to 5.3V, set by a single external resistor. Its high efficiency design delivers up to 13A continuous current for each output. Only a few input and output capacitors are needed

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    7 to 16 V
  • Output Voltage
    5 V
  • Output Current
    26 A

Featured Parts (7)

Featured Parts
Part Number Manufacturer Type Description
LTM4620AMPY#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin BGA Tray Buy
LTM4620AIY#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin BGA Tray Buy
LTM4620AEV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin LGA Tray Buy
LTM4620AIY Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin BGA Tray Buy
LTM4620AEY#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin BGA Tray Buy
LTM4620AIV#PBF Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin LGA Tray Buy
LTM4620AMPY Analog Devices DC to DC Converter and Switching Regulator Module Module DC-DC 2-OUT 0.6V to 5.3V 13A/13A 144-Pin BGA Tray Buy
