LM3410XSDSEPEV/NOPB, Demonstration Board using LM3410x SEPIC high brightness LED driver
Texas Instruments の部品 LM3410XSD を使用したリファレンス デザイン
画像
1 / 2
関連文書
最終製品向け
- Automotive and Transportation
- Flashlight
- LCD Backlighting
- OLED Display
説明

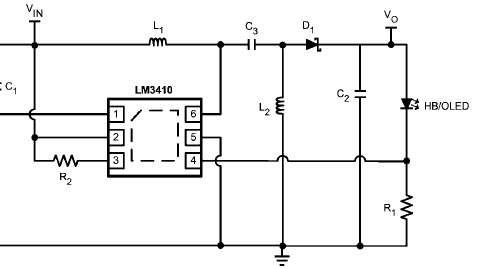

- LM3410XSDSEPEV/NOPB, Demo Board using LM3410x SEPIC high brightness LED driver. The demo board included in this shipment converts 2.7V to 5.5V input, and illuminates a 285mA HB/OLED using the LM3410X 1.6MHz LED driver switching converter
主な特徴
-
Input Voltage2.7 to 5.5 V
-
Output Voltage3.3 V
-
Output Current0.285 A
-
Number of Derived Elements1
注目のパーツ (6)
| 部品番号 | メーカー | タイプ | 説明 | |||
|---|---|---|---|---|---|---|
|
LM3410XSDE/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
|
|
LM3410XSDX/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
|
|
LM3410XSDE/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
|
|
LM3410XSD/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
|
|
LM3410XSDX/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
|
|
LM3410XSD/NOPB | Texas Instruments | LED Drivers | LED Driver 5 Segment 6-Pin WSON EP T/R | 買う | |
