TIDA-00057, 1Mbps Isolated RS-485 Reference Design
Texas Instruments の部品 ISO35TDW を使用したリファレンス デザイン
画像
1 / 1
最終製品向け
- Automotive HVAC
- Factory Automation
- Motion Motor Control
- Security System
- Wireless Sensor
説明

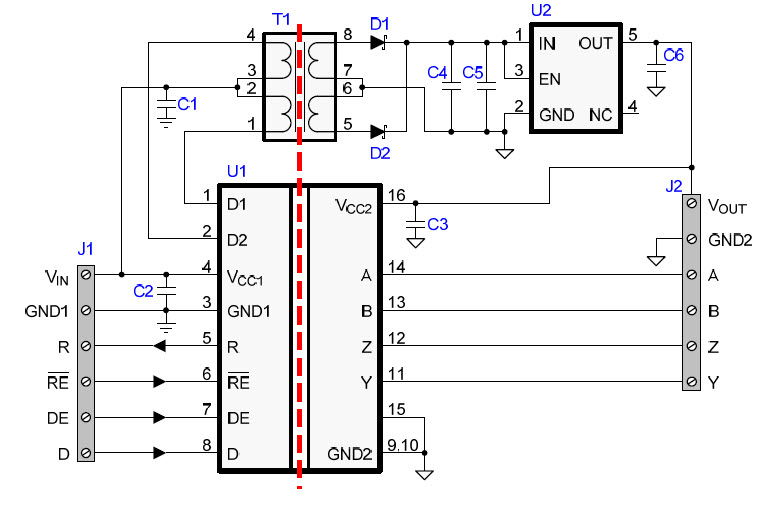

- TIDA-00057, provides an isolated, 1-Mbps, 3.3-V to 3.3-V RS-485 interface using the ISO35T, isolated RS-485 transceiver and the TPS76333 high-accuracy linear regulator. This board achieves signal and power isolation and at the same time decreases board space and power consumption
主な特徴
-
Interface StandardsRS-485
-
Isolated Voltage3.3 KV
-
Data Rate1 Mbps
-
FunctionsLine Transceiver
注目のパーツ (6)
| 部品番号 | メーカー | タイプ | 説明 | |||
|---|---|---|---|---|---|---|
|
TPS76333DBVT | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | 買う | |
|
|
TPS76333DBVTG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | 買う | |
|
|
TPS76333DBVRG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | 買う | |
|
|
TPS76333DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R | 買う | |
|
|
TPS76333QDBVRG4Q1 | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R Automotive AEC-Q100 | 買う | |
|
ISO35TDWR | Texas Instruments | Bus Line Transceivers | Single Transmitter/Receiver RS-485 16-Pin SOIC T/R | 買う | |
