TIDA-00467, Synchronizing Multiple JESD204B ADCs for Emitter Position Location Reference Design
Texas Instruments の部品 ADC12J4000NKE を使用したリファレンス デザイン
画像
1 / 32
関連文書
- TIDA-00467 BOM (TSW14J56)
- TIDA-00467 BOM (ADC12J4000)
- TIDA-00467 Software
- TIDA-00467 Assembly Drawing (ADC12J4000)
- TIDA-00467 Gerber (TSW14J56)
- TIDA-00467 Gerber (ADC12J4000)
- TIDA-00467 CAD Files (TSW14J56)
- TIDA-00467 PCB (TSW14J56)
- TIDA-00467 Assembly Drawing (TSW14J56)

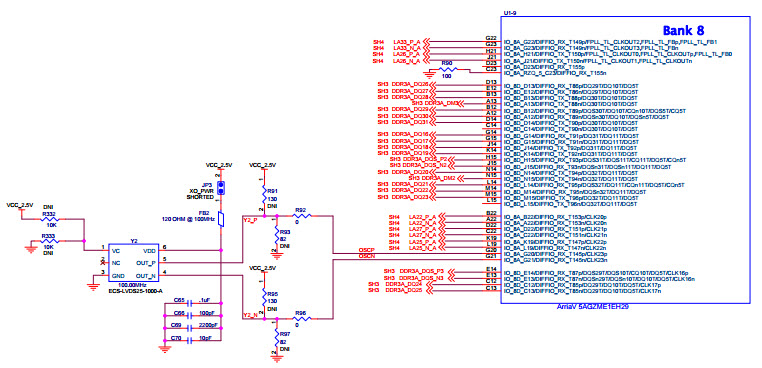

- TIDA-00467 Schematic (TSW14J56)
- TIDA-00467 Schematic (ADC12J4000)
最終製品向け
- Electronic Warfare
- Radar System
説明
- TIDA-00467, Synchronizing Multiple JESD204B ADCs for Emitter Position Location Reference Design. A common technique to estimate the position of emitters uses the amplitude and phase shift data of a signal derived from an array of spatially distributed sensors. for such systems, it is important to guarantee a deterministic phase relationship between the sensors to minimize errors in the actual measured data. This application design will discuss how multiple Analog to Digital Converters (ADCs) with a JESD204B interface can be synchronized so that the sampled data from the ADCs are phase aligned
主な特徴
-
ADC Resolution12 Bit
-
ADC Sampling Rate4G SPS
-
Number of Channels1CH
注目のパーツ (40)
| 部品番号 | メーカー | タイプ | 説明 | |||
|---|---|---|---|---|---|---|
|
ECS-LVDS25-1000-A | ECS, Inc. International | SMD Crystal Oscillators | Oscillator XO 100MHz ±100ppm LVDS 55% 2.5V 6-Pin CSMD T/R | 買う | |
|
TPS74901RGWTG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.8V to 3.6V 3A 20-Pin VQFN EP T/R | 買う | |
|
LMC6762AIMX/NOPB | Texas Instruments | Linear Comparators | Comparator Dual R-R I/O 15V 8-Pin SOIC T/R | 買う | |
|
2195MST | CTS Corporation | Switch DIP | Switch DIP ON OFF SPST 5 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube | 買う | |
|
93LC46B-I/SN | Microchip Technology | EEPROM | EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin SOIC N Tube | 買う | |
|
|
TPS7A7300RGWT | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.9V to 5V 3A 20-Pin VQFN EP T/R | 買う | |
|
TRF3765IRHBR | Texas Instruments | Clock Generators and Synthesizers | Clock Generator 0.5MHz to 350MHz-IN 4800MHz-OUT 32-Pin VQFN EP T/R | 買う | |
|
SN74AVC8T245DGVR | Texas Instruments | Level Translators | Voltage Level Translator CMOS to CMOS 8-CH Bidirectional 24-Pin TVSOP T/R | 買う | |
|
SN74AUP1T14DCKR | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-70 T/R | 買う | |
|
|
TPS7A7300RGWR | Texas Instruments | Linear Regulators | LDO Regulator Pos 0.9V to 5V 3A 20-Pin VQFN EP T/R | 買う | |
|
ABM3-12.000MHZ-B2-T | Abracon | Crystals | Crystal 12MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 60Ohm 2-Pin Mini-CSMD T/R | 買う | |
|
LP3878MR-ADJ/NOPB | Texas Instruments | Linear Regulators | LDO Regulator Pos 1V to 5.5V 0.8A 8-Pin HSOIC EP Tube | 買う | |
