TIDA-00988, 160-MHz Bandwidth Wireless Signal Tester Reference Design
Texas Instruments の部品 ADC31JB68RTA を使用したリファレンス デザイン
画像
1 / 11
最終製品向け
- Data Acquisition System
- Electronic Warfare
- IoT Applications
- Radar System
- Vector Signal Analyzer
- Wireless Communications
説明

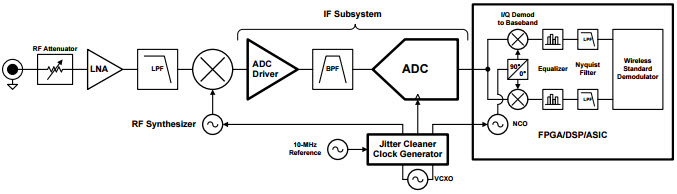

- TIDA-00988, 160-MHz Bandwidth Wireless Signal Tester Reference Design. This reference design implements an IF subsystem for a standard wireless signal tester with an active balun-amplifier (LMH5401), LC bandpass filter, 16-bit ADC (ADC31JB68) and clock cleaner and generator PLL (LMK04828). Measurements using modulated signals demonstrate reception of the signal with high constellation clarity and MER sufficient for testing a wide variety of standard signal types including 802.11ac (Wi-Fi), Bluetooth, ZigBee and the common cellular standards like UMTS and LTE
主な特徴
-
ADC Resolution16 Bit
