TIDEP0039, Sercos III Slave for AM437x Communication Development Platform Reference Design

Texas Instruments の部品 AM4376BZDN を使用したリファレンス デザイン

拡大する

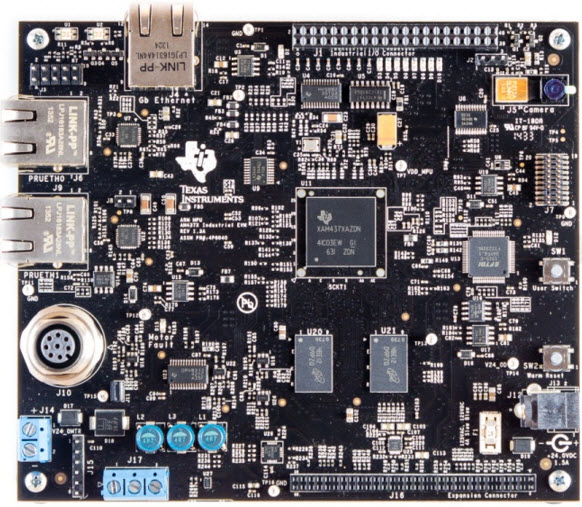

TIDEP0039 Image (Sheet 1 of 21)
TIDEP0039 Block Diagram (Sheet 2 of 21)

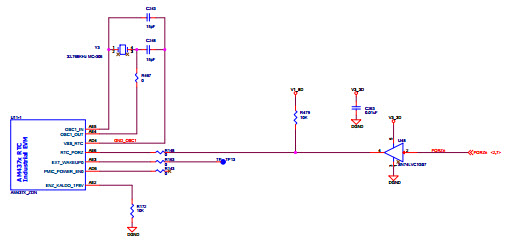

Processor System (Sheet 3 of 21)
Processor Power (Sheet 4 of 21)
Power (Sheet 5 of 21)
QSPI NOR Flash Memory (Sheet 6 of 21)
DDR3 SDRAM Memory (Sheet 7 of 21)
ICSS #0 Ethernet (Sheet 8 of 21)
ICSS #1 Ethernet (Sheet 9 of 21)
EtherCAT (Sheet 10 of 21)
SDMMC #0 Interface (Sheet 11 of 21)
Gigabit Ethernet #1 (Sheet 12 of 21)
Camera #0 (Sheet 13 of 21)
Industrial I/O (Sheet 14 of 21)
Motor Control (Sheet 15 of 21)
Motor Sense (Sheet 16 of 21)
Motor Encoders QEP and EnDAT (Sheet 17 of 21)
Debug/Configuration (Sheet 18 of 21)
USB JTAG (Sheet 19 of 21)
Expansion (Sheet 20 of 21)
3.3V Power (Sheet 21 of 21)
画像 1 / 21

メーカー

Texas Instruments
  • アプリケーションカテゴリ
    組み込みシステム
  • 製品タイプ
    アプリケーションプロセッサ

関連文書

最終製品向け

  • Factory Automation
  • Industrial Gateway - Router
  • Motor Driver
  • Process Control
  • Sensors
  • Transmitter

説明

  • TIDEP0039, Sercos III Slave for AM437x Communication Development Platform Reference Design. The TIDEP0039 Sercos III Slave for AM437x Communication Development Platform Reference Design combines the AM437x Sitara processor family and the Sercos III media access control (MAC) layer into a single system-on-chip (SoC) solution. Targeted for Sercos III slave communications, the TIDEP0039 allows designers to implement the real-time Sercos III communication standard for a broad range of industrial automation equipment

主な特徴

  • Embedded System Type
    SoC
  • Family Name
    Sitara AM437x
  • Core Processor
    ARM Cortex-A8|ARM Cortex-A9
  • Platform
    Industrial Development

注目のパーツ (84)

注目のパーツ
部品番号 メーカー タイプ 説明
KSZ9031RNXCC Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin QFN EP Tray 買う
KSZ9031RNXCC-TR Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin VQFN EP T/R 買う
TPS79301DBVRQ1 Texas Instruments Linear Regulators LDO Regulator Pos 1.2V to 5.5V 0.2A Automotive AEC-Q100 6-Pin SOT-23 T/R 買う
TXS0102DCTT Texas Instruments Level Translators Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R 買う
AM4378BZDNA80S Texas Instruments Microprocessors - MPUs Sitara ARM Cortex -A9 32-Bit RISC Processor 買う
AM4378BZDND80 Texas Instruments Microprocessors - MPUs MPU AM437x RISC 32bit 800MHz 491-Pin NFBGA Tray 買う
SN74LVC8T245PWR Texas Instruments Level Translators Voltage Level Translator 8-CH Bidirectional 24-Pin TSSOP T/R 買う
TPS51200DRCT Texas Instruments Special Purpose Voltage Regulators DDR Memory Termination Regulator 2.375V to 3.5V 10-Pin VSON EP T/R 買う
KSZ9031RNXIC-TR Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin VQFN EP T/R 買う
KSZ9031RNXVB-TRVAO Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin VQFN EP T/R Automotive AEC-Q100 買う
KSZ9031RNXUB-VAO Microchip Technology PHY PHY 1-CH 10Mbps/100Mbps/1Gbps 1.8V/2.5V/3.3V 48-Pin VQFN EP Tray Automotive AEC-Q100 買う
TPS22922BYZPR Texas Instruments Power Switches Power Switch Hi Side 1-OUT 2A 116mOhm 6-Pin DSBGA T/R 買う
