AC182015-1, ZENA Wireless Adapter with 2.4-GHz MRF24J40 RF Transceiver
Microchip Technology이 부품 MRF24J40MA-I/RM 을 사용하는 참조 설계
이미지
1 / 3
최종 제품의 경우
- Consumer Electronics
- Home Appliances
- System Monitoring and Control
- Wireless
- Wireless Sensor
Description

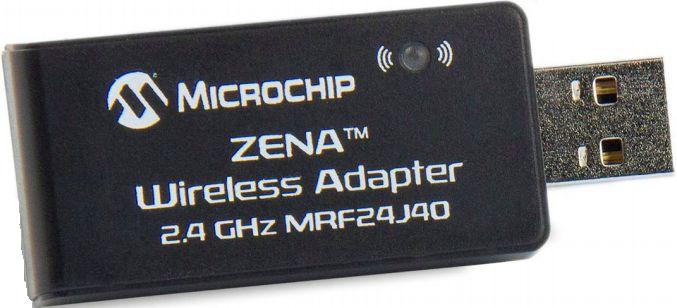

- AC182015-1, ZENA Wireless Adapter based on 2.4 GHz MRF24J40. The ZENA Wireless Adapter is a multifunction Universal Serial Bus (USB) wireless adapter connecting USB-equipped desktop or notebook computers with Microchip wireless products for development or application uses. As a development tool, the ZENA Wireless Adapter can be used as a protocol analyzer or as a diagnostic tool. It can also be used to connect the computer as a wireless node to the network for application use
최종 제품의 경우
-
Operating Frequency2400 MHz
피쳐링 부품 (7)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
PIC18F26J50-I/SS | Microchip Technology | Microcontrollers - MCUs | MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V 28-Pin SSOP Tube | 구매 | |
|
25AA02E48-I/SN | Microchip Technology | EEPROM | EEPROM Serial-SPI 2K-bit 256 x 8 2.5V/3.3V/5V 8-Pin SOIC N Tube | 구매 | |
|
MCP1700T-3302E/TT | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.25A Automotive AEC-Q100 3-Pin SOT-23 T/R | 구매 | |
|
ABMM-8.000MHZ-B2 -T2 | Abracon | Crystals | Crystal 8MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 70Ohm 4-Pin CSMD | 구매 | |
|
|
ABMM-8.000MHZ-B2-T | Abracon | Crystals | Crystal 8MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 70Ohm 4-Pin CSMD T/R | 구매 | |
|
25LC256-I/SN | Microchip Technology | EEPROM | EEPROM Serial-SPI 256K-bit 32K x 8 3.3V/5V Automotive AEC-Q100 8-Pin SOIC N Tube | 구매 | |
|
MRF24J40MA-I/RM | Microchip Technology | RF Transceivers | RF Transceiver Module 3.3V 12-Pin SMD Module Tray | 구매 | |
