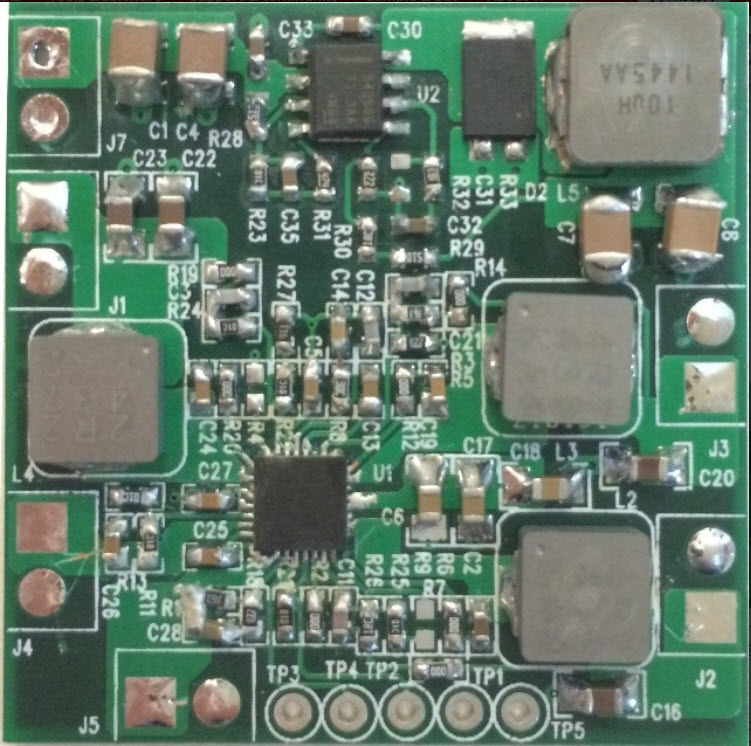

PMP4465.3, Highly Integrated Buck Converter for MTK3360/70 Power in Automotive Applications Reference Design
Texas Instruments이 부품 TPS65262 을 사용하는 참조 설계
이미지
1 / 2
최종 제품의 경우
- Automotive and Transportation
- Motor Control
- Power Management
Description
- PMP4465.3, Highly Integrated Buck Converter for MTK3360/70 Power in Automotive Applications Reference Design. The PMP4465 is a reference design solution for powering MTK3360/70 processors used in automotive video applications. The TPS54360-Q1 provides a wide input voltage range of 7V to 42V and provides a stable 5V output for TPS65262-Q1. The TPS65262-Q1 integrates three buck converters and dual adjustable LDOs to get 5 regulated outputs. The PMP4465 provides a total solution from the battery to terminal loads
최종 제품의 경우
-
Conversion TypeDC to DC
-
Input Voltage5 to 5 V
-
Output Voltage1.5 V
-
Output Current1 A
-
Output Power1.5 W
-
TopologyBuck- Integrated Switch
피쳐링 부품 (2)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TPS65262RHBT | Texas Instruments | PMIC Solutions | Power Management IC 4.5V to 18V 32-Pin VQFN EP T/R | 구매 | |
|
|
TPS65262RHBR | Texas Instruments | PMIC Solutions | Power Management IC 4.5V to 18V 32-Pin VQFN EP T/R | 구매 | |
