PMP5604, Negative 14V inverter
使用 Texas Instruments 的 TPS40200D 的参考设计
1 / 1
相关文件
依据最终产品
- Backplane Distributed Power
- Cable Modem
- DSL Modem
- Industrial Control
- Scanners
- Telecom Infrastructure
说明

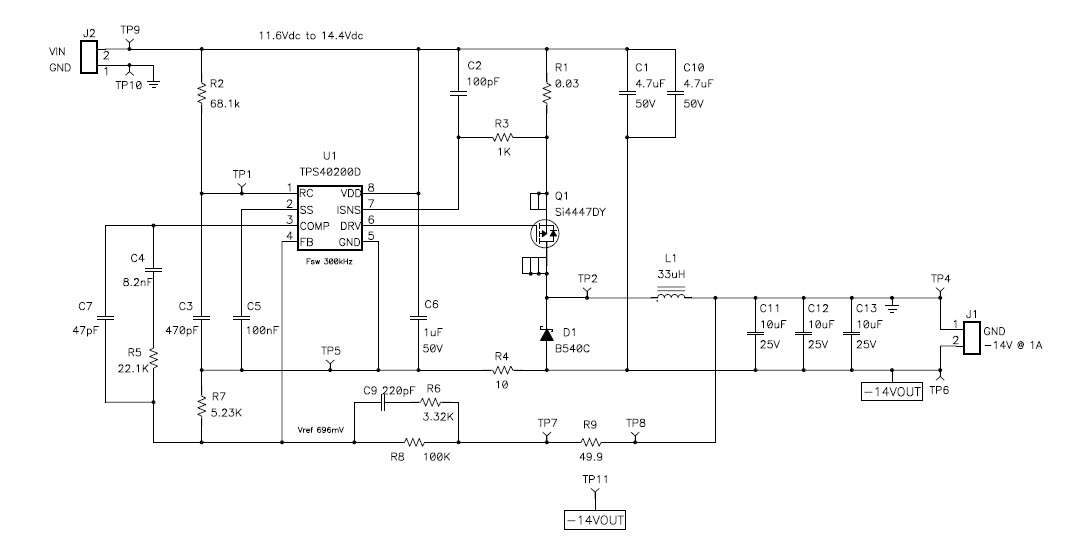

- PMP5604, 2x inverting Buck-Boost -14V @1A, RevB w/ TPS54240, RevC2 w/ TPS40200, provides negative output out of positive input
主要特色
-
Conversion TypeDC to DC
-
Input Voltage11.6 to 14.4 V
-
Output Voltage-14 V
-
Output Current1 A
-
Efficiency94 %
-
TopologyBuck Boost
Featured Parts (6)
| 零件编号 | 供应商 | 类别 | 说明 | |||
|---|---|---|---|---|---|---|
|
TPS40200DG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC Tube | 买入 | |
|
|
TPS40200DR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC T/R | 买入 | |
|
TPS40200DRBR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin VSON EP T/R | 买入 | |
|
|
TPS40200DRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC T/R | 买入 | |
|
|
TPS40200DRBT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin VSON EP T/R | 买入 | |
|
|
TPS40200D | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 500kHz 8-Pin SOIC Tube | 买入 | |
