EVAL-ADV7181CEBZ, Evaluation Board for ADV7181C Video Decoder

Reference Design using part ADV7181C by Analog Devices

Enlarge
EVAL-ADV7181CEBZ Image (Sheet 1 of 10)
Decoder Section (Sheet 2 of 10)

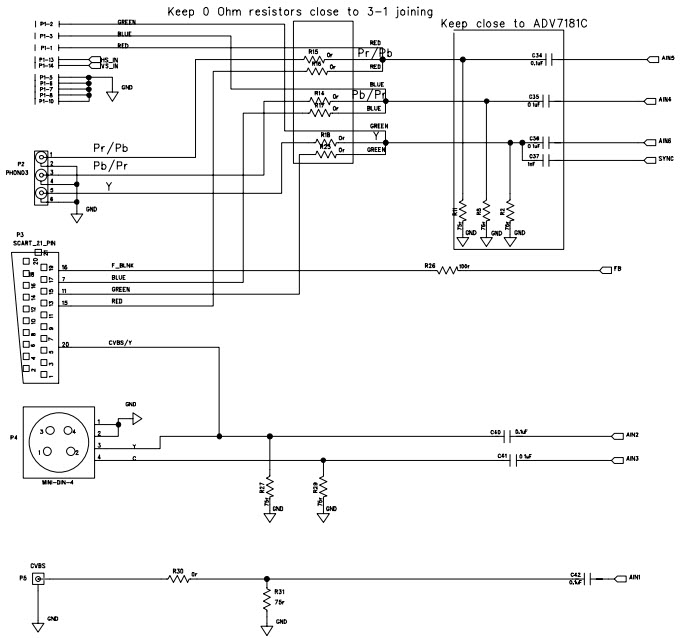

Analog Input Stage (Sheet 3 of 10)

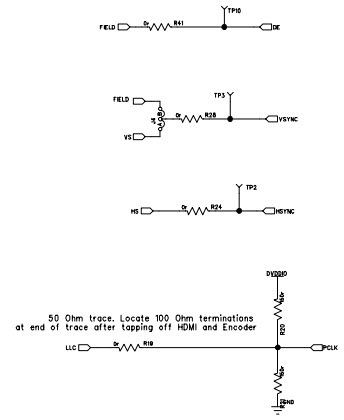

Decoder Output Block (Sheet 4 of 10)
Header (Sheet 5 of 10)
ADV7341 Encoder (Sheet 6 of 10)

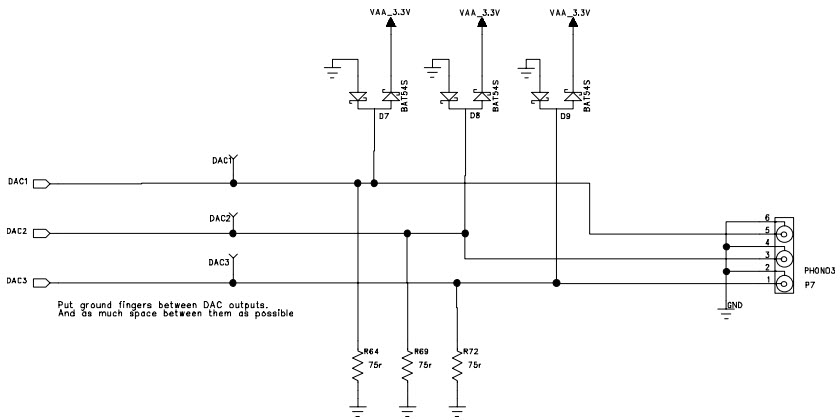

Component Output (Sheet 7 of 10)

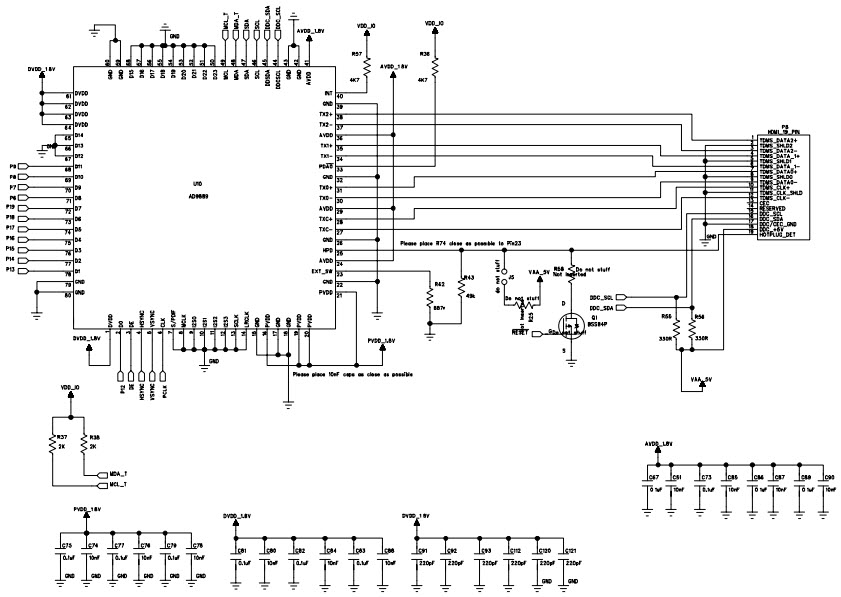

HDMI Output (Sheet 8 of 10)

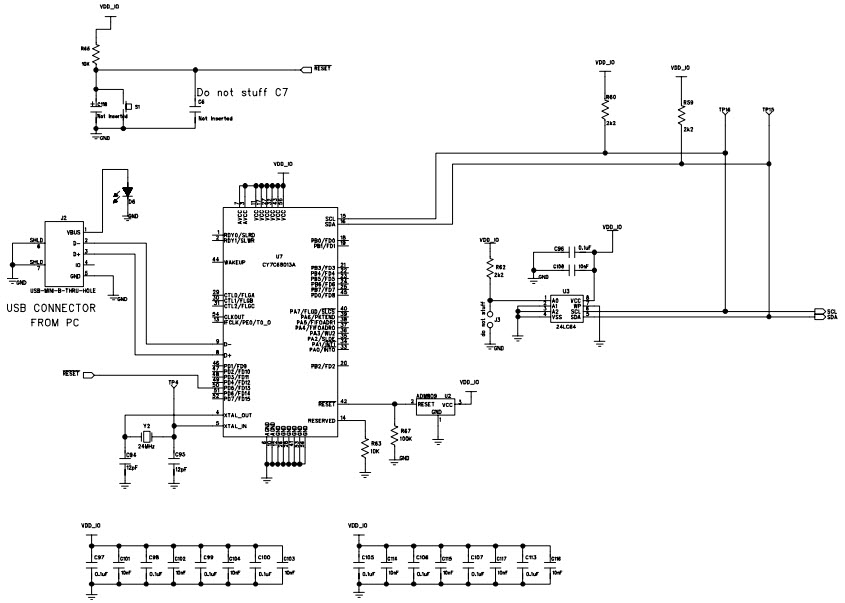

I2C Interface (Sheet 9 of 10)

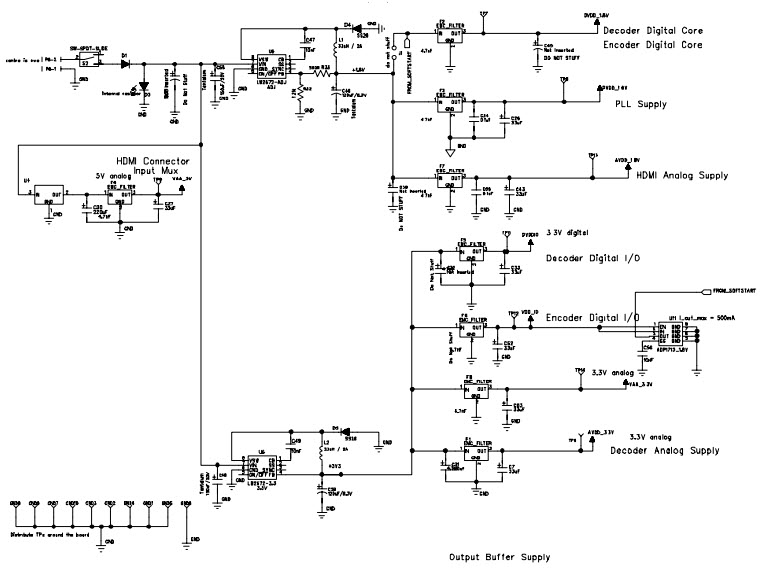

PSU (Sheet 10 of 10)
Image 1 / 10

Manufacturer

Analog Devices
  • Application Category
    Video
  • Product Type
    Video Encoder-Decoder

For End Products

  • Automotive Applications
  • AV Receiver
  • High-Definition TV
  • LCD Projector
  • Rear Seat Entertainment
  • STB and DVR

Description

  • EVAL-ADV7181CEBZ, Evaluation Board for the ADV7181C video decoder

Key Features

  • Video Interface Type
    NTSC/PAL/SECAM

Featured Parts (56)

Featured Parts
Part Number Manufacturer Type Description
ADM809MARTZ-REEL7 Analog Devices Supervisory Circuits Processor Supervisor 4.38V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R Buy
24LC64-I/SM Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIJ Tube Buy
24LC64T-E/MS Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin MSOP T/R Automotive AEC-Q100 Buy
24LC64-I/P Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin PDIP Tube Buy
24LC64-I/SNG Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube Buy
24LC64-E/MS Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin MSOP Tube Automotive AEC-Q100 Buy
ADM809LARTZ-REEL Analog Devices Supervisory Circuits Processor Supervisor 4.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R Buy
24LC64T-E/MC Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin DFN EP T/R Automotive AEC-Q100 Buy
24LC64T-I/ST Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin TSSOP T/R Buy
24LC64-I/MS Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin MSOP Tube Buy
24LC64-E/SM Microchip Technology EEPROM EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIJ Tube Automotive AEC-Q100 Buy
ADP1715ARMZ-1.8-R7 Analog Devices Linear Regulators LDO Regulator Pos 1.8V 0.5A 8-Pin MSOP T/R Buy
Load More
